AWG-48

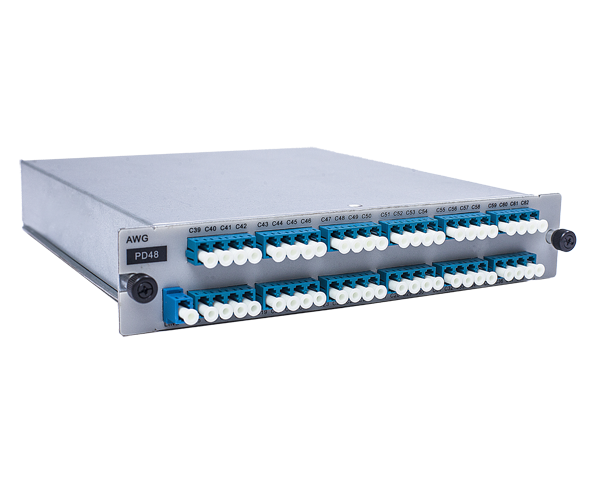

AWG DWDM Module

AWG split-wave card launched by 3C-LINK Opto Co., Ltd. is mainly used in the DWDM system to complete 40 optical wavelength multiplexing and demultiplexing functions in the C-band range, which can multiplex different wavelengths of light into one. Multiple optical channels multiplexed on the same fiber are separated by wavelength on the fibe

DWDM 32/40/48 Channle MUX/DEMUX

The 100G AWG DWDM Equipment Gaussian Type Dual Fiber offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications.

The 100G AWG DWDM Equipment Gaussian Type Dual Fiber offers an ultra low-loss (Max: 3.5dB) and high channel isolation WDM solution for metro access and data centers applications. this 100G AWG DWDM Equipment Gaussian Type Dual Fiber ease of fiber handling, long-term reliability and excellent channel isolation in a 1U 19" Rackmount, which is the ideal device for systems requiring superior performance, low cost and high channel counts. The 100G AWG DWDM Equipment Gaussian Type Dual Fiber built-in Mux + Demux in one unit, working on two network fibers.

Product features

  • Low insertion loss (IL)
  • High channel isolation
  • High stability and reliability
  • Provide 1 to 18 channels


Function Note
Optical channel number 32/40/48 channel, support C band
Channel spacing 0.8nm (100GHz)
Channel frequency ±12.5 GHz
Wavelength accuracy ≤0.05nm
Channel insertion loss ≤5.5dB
-1dB bandwidth ≤0.34dB
-3dB bandwidth ≤0.51dB
Adjacent channel isolation ratio ≥25dB
Non-adjacent channel isolation ratio ≥30dB
Total isolation ≥23dB
Flatness ≤1.5dB
Return loss ≥45dB
Directivity ≥50dB
Occupied slot number Support OTNS8600 series chassis, occupy 2 slot
Optical interface LC/UPC
Extend function Support C band（C_EVEN）40 channel and（C_ODD）40 channel through Interleaver extend to 80 channel
Max power consumption 3W
MTBF ＞100000 hours
