5U OTN PLATFORMS

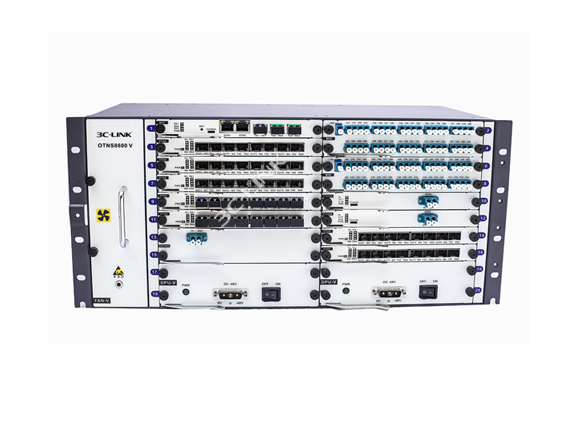

The integrated C/DWDM platform of 3C-OTNS8600V type optical transmission network system is mainly used in the metro area access layer network, and it can complete the function such as optical fiber saving, service multiplexing and distance extension, solve the shortage of fiber resources in the access layer network, provide clients a access solution of broadband multiple service access with low cost, multiple service access and high efficiency. 3C-OTNS8600V can cooperate with other 3C-LINK OTNS series products and implement networking according to the different requirements. 3C-OTNS8600V type optical transmission network system is standard 5U rack type design fully adopts the way of outlet on the front panel, provides 15 service single-board slots, 1 network management single-board integrated with service slot, 1 fan single-board slot and 2 power single-board slots, which are all pluggable. High degree of business integration,Large port density ,rich business type,flexible configuration,It supports the access of up to 64 bidirectional 10G~100G services or 128 unidirectional 10G~100G services on a single equipment, and the expansion of transmission capacity is available through the equipment stack.

5U OTN PLATFORMS

The integrated C/DWDM platform of 3C-OTNS8600I type optical transmission network system

  Huge capacity transmission and capacity of modular upgrade

* Supports 96 wavelength 1-100G system transmission at C-band
* Supports a access rate of up to 100Gbit/s for single channel
* Supports a single level multiplexing/demultiplexing architecture for 80/96 wavelength
* Supports system upgrade meet the future growing demand in bandwidth


  Multi-rate, multi-protocol, full-service access and convergence

* Access to SDH/SONET services, GE, 10 GE, 40 GE, 100 GE and other services of SAN,  CPRI at various rate levels.
* Powerful capacity of service convergence, supporting 8xEE/GE service convergence    and 10×10GE service convergence


   High integration, green, convenient maintenance

* 5U frame supports 18 service slots, with a super high level of integration
* Compact structure and flexible installation, available for installation in cabinet with 300 mm depth
* Supports free-of-configuration installation, and the equipment is plug-and-play
* Supports a unified network management platform and provides a perfect performance monitoring ability in  performance of network and equipment
* Lowest power consumption in the industry, assist operators to build green energy-saving network


   Outstanding architecture design and secure data transmission

* It offers a variety of network level protection and provides comprehensive protection for optical fiber line
* It provides comprehensive equipment protection: power equipment protection, fan protection
* All-service transparent transmission reduces the transmission delay of circuit cross and ensures the reliability of  transmission
* All optical interfaces are pluggable and reusable, which reduces the investment of spare parts

Performance Parameters Technical Indicators
Product model 3C-OTNS8600V
Equipment size 5U:220 mm (height)x442 mm (width)x220 mm (depth)
Service slot 19 slots( 1FAN card, 1 Manage Card, 2 Power Card, 15 Data Card)
Transmission capacity of Single equipment 64 * 1G~100G bidirectional transmission
128 * 1G~100G  unidirectional transmissions
Wavelength  CWDM:1271nm~1611nm
 DWDM:C Band, 100 GHZ or 50 GHZ
Maximum rate of Single channel  1~100Gbit/ s
Transmission distance Upto 200km when work with EDFA.
Service interface type 1G~100G all kind of services, including services of
STM-1/4/16/64, OC-3/12/48/192, FE, GE, 10GE, 100GE, FC100/200/400/800/1200, FICON, ESCON,
CPRI 1/2/3/6/7
Clock features Support IEEE 1588 V2
Optical connector SFP/SFP +/CFP/QSFP28 LC type interface
Network topology Point to point, chain type, star type, ring type
Installation "19"and 23" cabinets, ETSI 300mm/600mm cabinets
Wireless outdoor base station cabinet, FTTx outdoor cabinet, hanging wall, derrick
Working temperature range  - 10 ℃~60 ℃ (typical)
Working humidity range 5~95% no condensation
Storage temperature range  -40℃~85℃
Heat dissipation Fan cooling
Power supply mode AC: 90~260 V or DC: -36~-72 V (support 1+1 backup power input)
Power consumption 300W (typical)


Lifetime Warranty

All the fiber optic products in 3C-LINK are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
