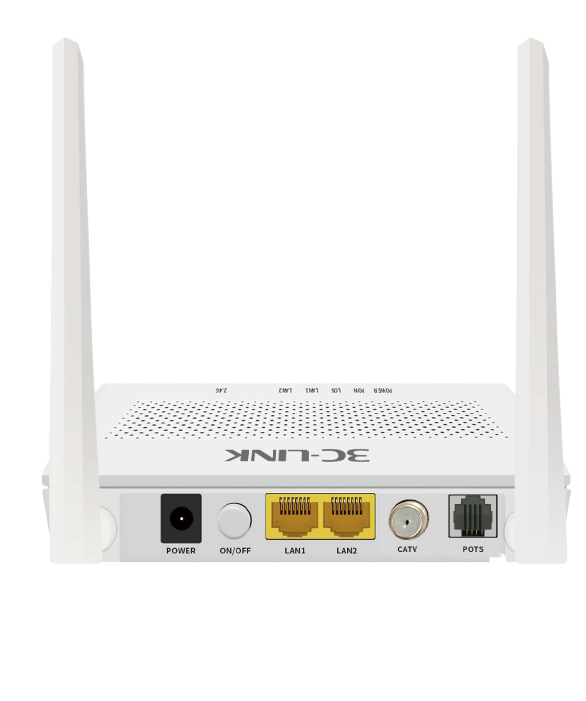

1GE+1FE+WIFI+1POTS + CATV XPON ONU

3C-ONU-X111WC ONU supports EPON/GPON three modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/EPON/XPON adaptive access. 3C-ONU-X111WC based on the mature, stable, high cost performance technology, gigabit Ethernet switching, WDM and HFC technology. It has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT. It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service. 3C-ONU-X111WC integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

3C-ONU-X111W supports EPON/ GPON/ XPON three modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/ EPON/ XPON adaptive access.

3C-X111W features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. It can be used in connection with our company 3C-OLT-004/8/16G series GPON OLT or 3C-OLT-004/8/16E series EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT. The device performance and functions also meet IEEE802.3ah, ITU-T G984 technical specifications.

3C-ONU-X111W integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

PRODUCT FEATURES

In compliant with3ah and ITU – T G.984 standard
Support ONU auto-discovery/Link detection/remote upgrade of software
Meet 11 b/g/ntechnical standards
Support VLAN transparent, tag configuration
Support multicast function
Support DHCP/Static/PPPOE internet mode
Support port-binding
Support OAM/OMCI+TR069 remote management
Support data encryption and decryption function
Support Dynamic Bandwidth Allocation (DBA)
Support MAC filter and URL access control
Support power-off alarm function ,easy for link problem detection
Specialized design for system breakdown prevention to maintain stable system
EMS network management based on SNMP ,convenient for maintenance

Item		Parameter
Interface	EPON/GPON Interface	SC/UPC single mode single fiber GPON：FSAN G.984.2 standard, Class B+ EPON：1000BASE-PX20+ symmetric GPON：2.488Gbps/1.244Gbps downstream/upstream EPON：1.25Gbps downstream/upstream Wavelength: Transmit: 1310nm Receiver: 1490nm Receiving sensitivity : GPON：-28dBm EPON：-27dBm Saturated power : GPON：-8dBm EPON：-3dBm Transmitting power : GPON：0.5～5dBm EPON:0～4dBm
	Ethernet Interface	110/100/1000M and 110/100M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
	POTS Interface	1*RJ11 Max 1km distance Balanced Ring, 50V RMS
	CATV Interface	1 RF output F-Type Connector
	Power Interface	12V DC Power supply
Network Management	Management Mode	OMCI, OAM, TR069, WEB, Telnet
Network Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Physical Features	Power	<4W, 12V/0.5A power supply adapter
	Physical Specifications	Item Dimension：228mm(L) x108mm(W) x 28mm (H) Item Net Weight：about 136g
	Environmental Specifications	Operating temperature: 0 to 40ºC Operating humidity: 10% to 90%(Non-condensing)

CATV

Item	Parameter
Wavelength	1550nm
Optical return loss	>45dB
Input optical power	-18dBm～0dBm
RF frequency	47MHz~1000MHz
RF output lever	82dBuV (@-12~-2dBm@85MHz)
CNR	>41dB (@-10dBm@DS22 Channel)
CSO	>58dBc (@-10dBm@DS22 Channel)
CTB	>58dBc (@-10dBm@DS22 Channel)
RF output return loss	>12dB
RF impedance	75Ω
AGC function	Support

WIFI Specification

Item		Parameter
Performance parameters	Operating Mode	Router or bridge
	Technical standard	IEEE802.11b/g/n
	Frequency	2.412 ~ 2.472 GHz
	Antenna gain	5dBi
	Support rate	802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps 802.11n: max rate 300Mbps
	Channel	2.4GHz Channel：1,2,3,4,5,6,7,8,9,10,11,12,13
	Modulation mode	11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps) 11g：OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps) Q64QAM(48/54Mbps) 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
	Receive sensitivity	11Mbps:≤-90dBm 54 Mbps:≤-76dBm HT20 MCS7:≤-73dBm HT40 MCS7:≤-70dBm
	Transmit power	802.11n: 17dBm
	Encryption mode	AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK
