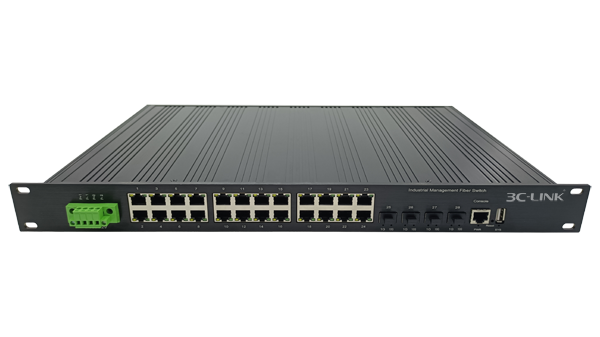

24* 10/100/1000M RJ45 and 4*1/10G SFP+ Managed IES

The 3CI-SFP0424TGM series is a 10G uplink managed industrial Ethernet fiber switch independently developed by 3C-LINK. It has 24*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding. The 3CI-SFP0424TGM has L3 full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP

24* 10/100/1000M RJ45 and 4*1/10G SFP+ Managed IES

24*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding.

FEATURE



Gigabit access, 10G uplink
◇ All series supports “Gigabit Ethernet port and 10G SFP+ uplink port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.


Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.


Stable and reliable

◇ Low power consumption, No fan, aluminum shell.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link , L/A, SPEED.



Easy operation and maintenance management

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).


TECHNICAL SPECIFICATION


Model 3CI-SFP0424TGM
Interface Characteristics
Fixed Port 24*10/100/1000Base-T RJ45 ports (Data)
4*1/10G uplink SFP+ fiber slot ports (Data)
1*Console RS232 port (115200,N,8,1)
Alarm switch(FAULT)
1 *AC100-240V power input port
2 * DC12-48V power input ports ( support anti-reverse protection)
Ethernet Port Port 1-24 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
Optical Fiber Port Gigabit SFP /10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
SFP Port Expansion Turbo overclocking 2.5G optical module and ring
Optical Cable/ Distance Multi mode: 850nm / 0 ~ 500M, 0 ~ 300M (10G);
single mode: 1310nm / 0 ~ 40KM, 1550nm/ 0 ~ 120KM.
Chip Parameter
Network Management Type L3
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3ae 10GBase-LR/SR
IEEE802.3x
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 598Gbps (non-blocking)
Forwarding
Rate@64byte
95.23Mpps
MAC 32K
Buffer Memory 32M
Jumbo Frame 9.6K
LED Indicator Power: PWR (yellow), system:SYS (yellow), network: Link/Act (yellow), Fiber port : L/A (green)
Reset Switch Yes, support one key to restore factory settings
Power
Total PWR / Input Voltage 60W (AC100-240V)
Power Consumption Standby<35W, Full Load<45W
Power Supply Built-in power supply, AC 100~240V 50-60Hz 0.65A
Power Input Interface Dual input power port design, AC power supply priority,
support anti-reverse protection, power-off automatic switching DC connection; 2*DC12-48V power input ports;
Alarm switch, 1*AC power input port
Physical Parameter
Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H) 440*250*44mm
Net /Gross Weight <4.8kg / <5.5kg
Installation Desktop type ,19 inch 1U cabinet installation
Certification & Warranty
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m  1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)
Mechanical Properties IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty 5 years, lifelong maintenance.
Network Management Features
Interface IEEE802.3X (Full-duplex)
Port temperature protection setting
Port green Ethernet Energy-saving setting
Broadcast storm control based on port speed
The speed limit of the message flow in the access port.
The minimum particle size is 64Kbps.
Layer 3 Features L3 network management ,IPV4/IPV6 management
L3 soft routing forwarding,
Static route, Default route @ 128 pcs, APR @ 1024 pcs
VLAN 4K VLAN based on port, IEEE802.1q
VLAN based on the protocol
VLAN based on MAC
Voice VLAN, QinQ configuration
Port configuration of Access, Trunk, Hybrid
Port Aggregation LACP, Static aggregation
Max 14 aggregation groups and 8 ports per group.
Spanning Tree STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s)
Industrial Ring Network Protocol G.8032 (ERPS),Recovery time less than 20ms
250 Ring at most, Max 254 devices per ring.
Multicast MLD Snooping v1/v2,Multicast VLAN
IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out
Port Mirroring Bidirectional data mirroring based on port
QoS Flow-based Rate Limiting
Flow-based Packet Filtering
8*Output queues of each port
802.1p/DSCP priority mapping
Diff-Serv QoS,Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL Port-based Issuing ACL,ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
Security IP-MAC-VLAN-Port binding
ARP inspection,Anti-DoS attack
AAA & RADIUS,MAC learning limit
Mac black holes,IP source protection
IEEE802.1X & MAC address authentication
Broadcast storm control,Backup for host datum
SSH 2.0,SSL,Port isolation,ARP message speed limit
User hierarchical management and password protection
DHCP DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay
Management One-key recovery
Cable Diagnose,LLDP
Web Management (HTTPS)
NTP,System work log,Ping Test
CPU instant utilization status view
Console/AUX Modem/Telnet/SSH2.0 CLI
Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3
NMS - smart network management system platform(LLDP+SNMP)
System Category 5 Ethernet network cable
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network
