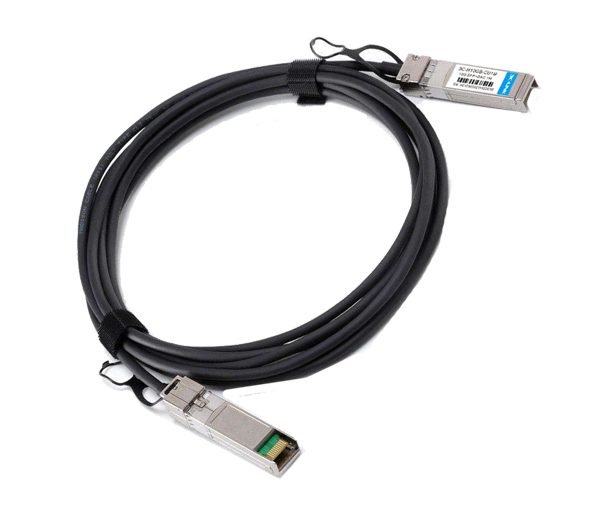

10G SFP+ DAC Cable

3C-LINK SFP+ cable component: provides a cost-effective solution for short-distance high-speed interconnection applications at a rate of 10 gbit/s and meets the requirements of 10G Ethernet and Infiniband SDR, DDR, or QDR

10G DAC Cable

SFP+ DAC cable based on IEEE 802.3ae and MSA SFF-8472, SFF-8431, support 1~10G multi-rate communication

3C-LINK  SFP+ DAC cable based on IEEE 802.3ae and MSA SFF-8472, SFF-8431, support 1~10G multi-rate communication and application such as 10G Ethernet, 8~10FC.

SFP+ Copper Twinax cables are suitable for very short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. SFP+ DAC cable which replaces two optical modules and a connectorized optical fiber with a twinaxial copper cable assembly.

3C-LINK offers the higher density, lower cost, and lower power 10 Gigabit Ethernet solution than other cable types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T.


• Meet MSA SFF-8431 standard

• Supports 10G transmission rate

• supports passive 7m transmission distance

• 24~30AWG variety cable size selection

• Meet EMI standard requirements

• Reliable ring pull buckle design

• RoHS and low smoke halogen-free products are available

• Lower cost and less power consumption than short distance fiber connection solutions

SFP+ Passive Cable Assembly Length Recommendation

SFP+ Active Cable Assembly Length Recommendation
