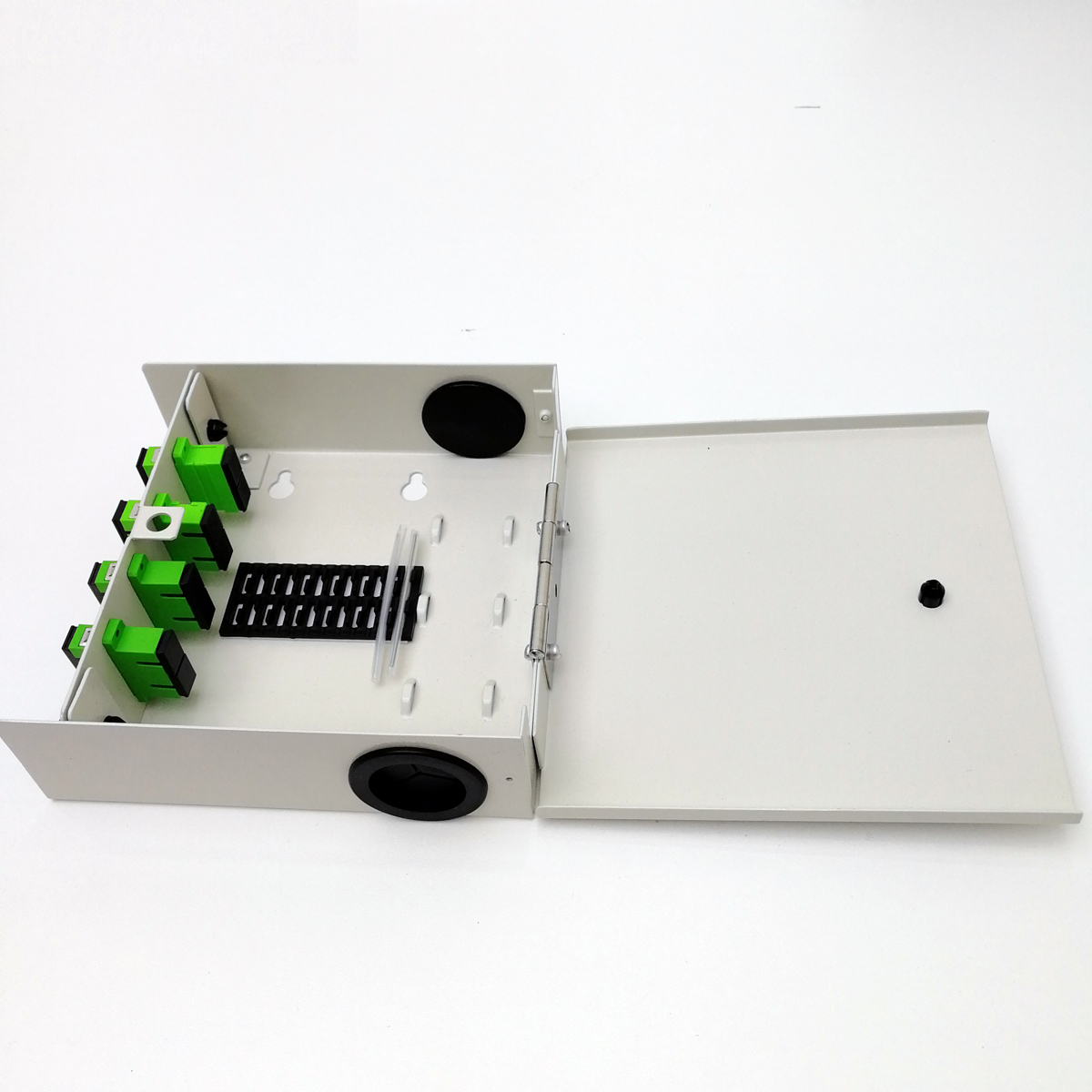

3C-OTB-08 (1)

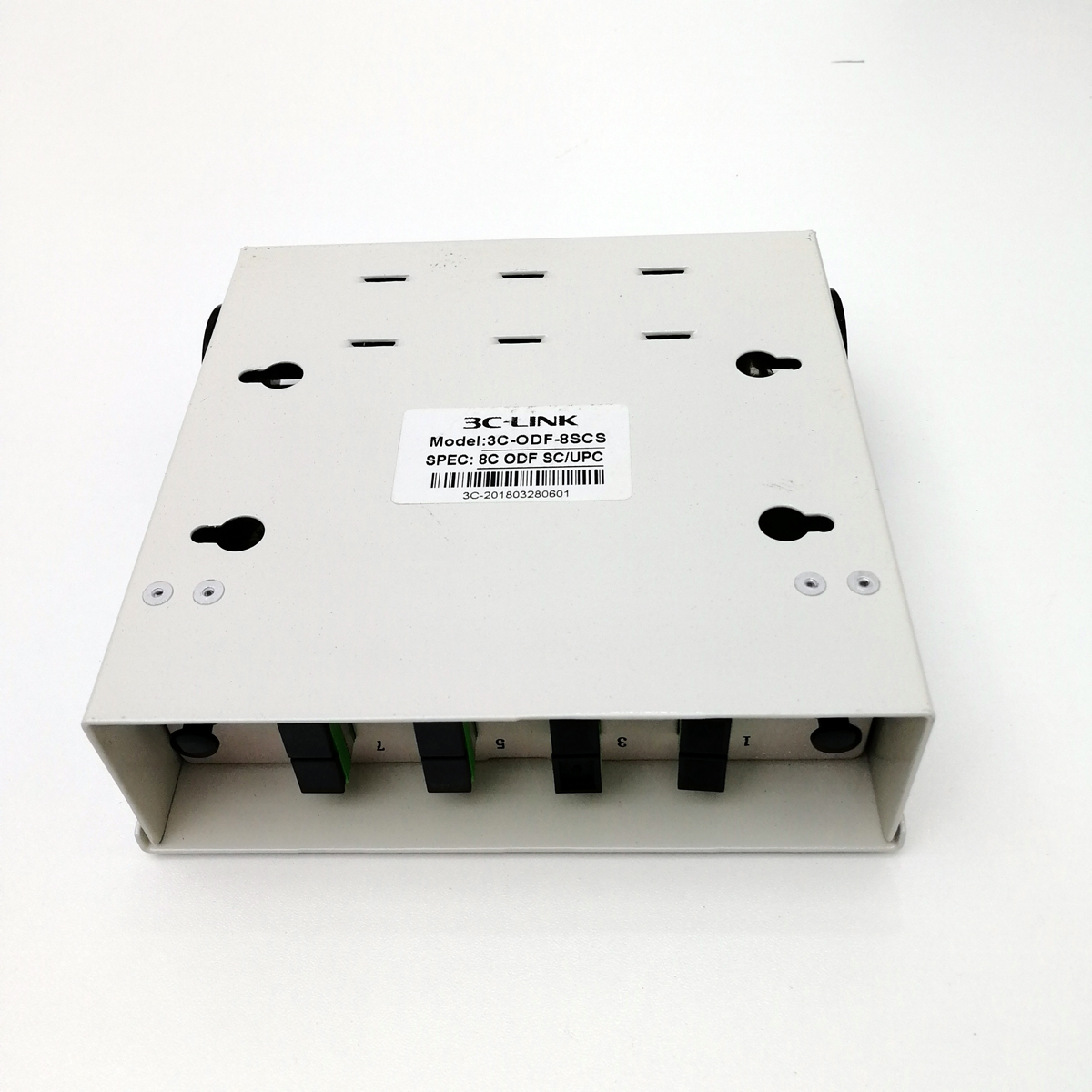

3C-OTB-08 (3)

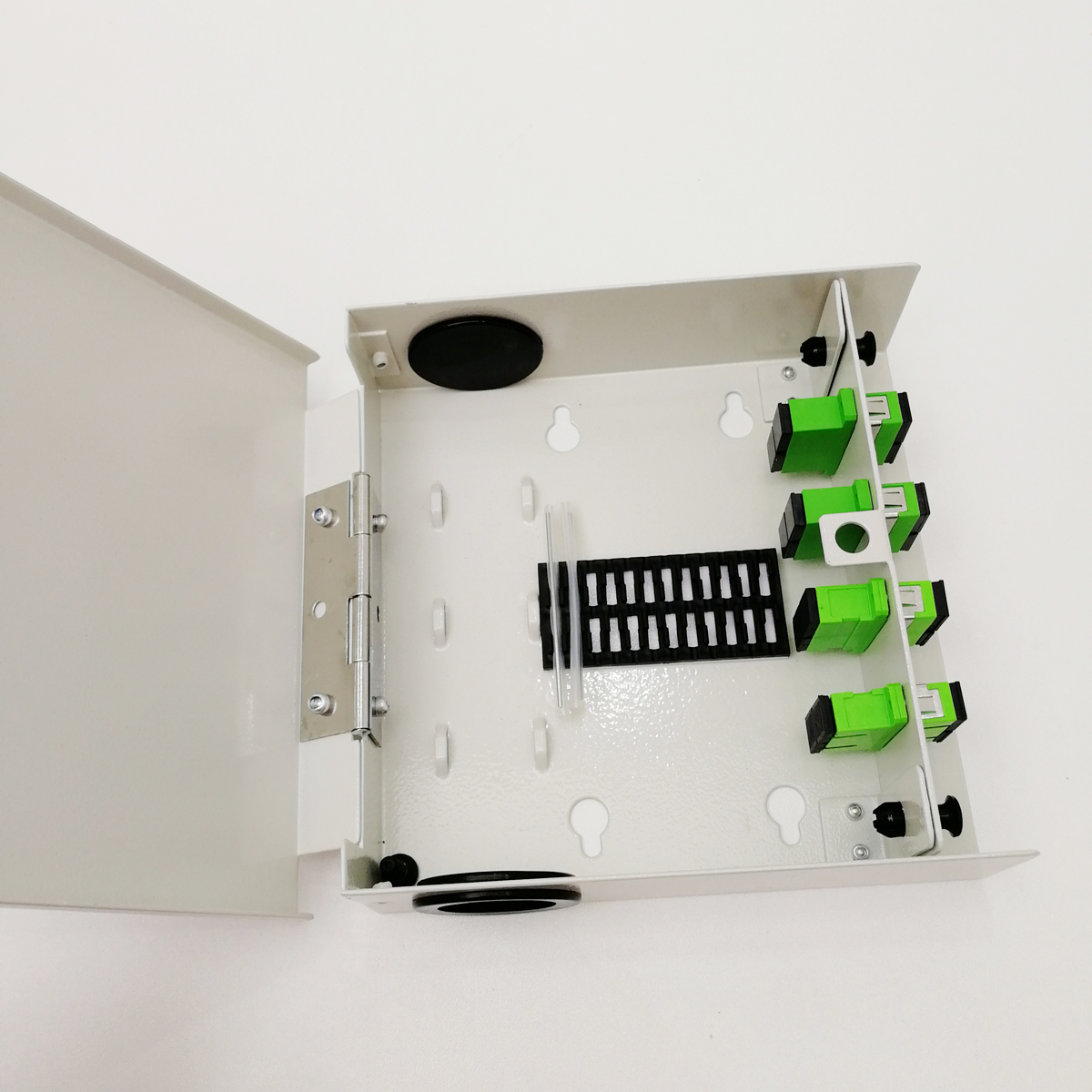

3C-OTB-08 (4)

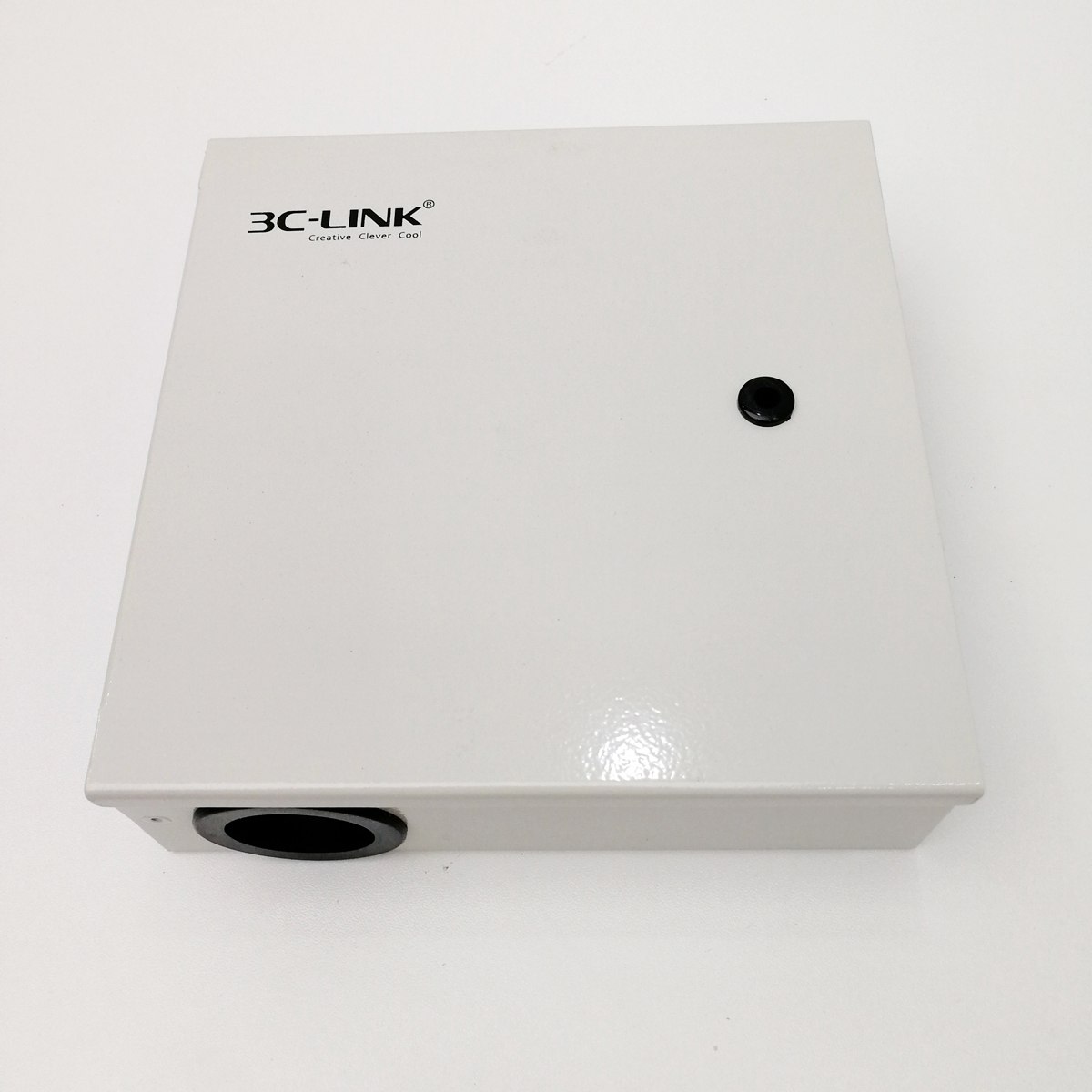

3C-OTB-08 (6)

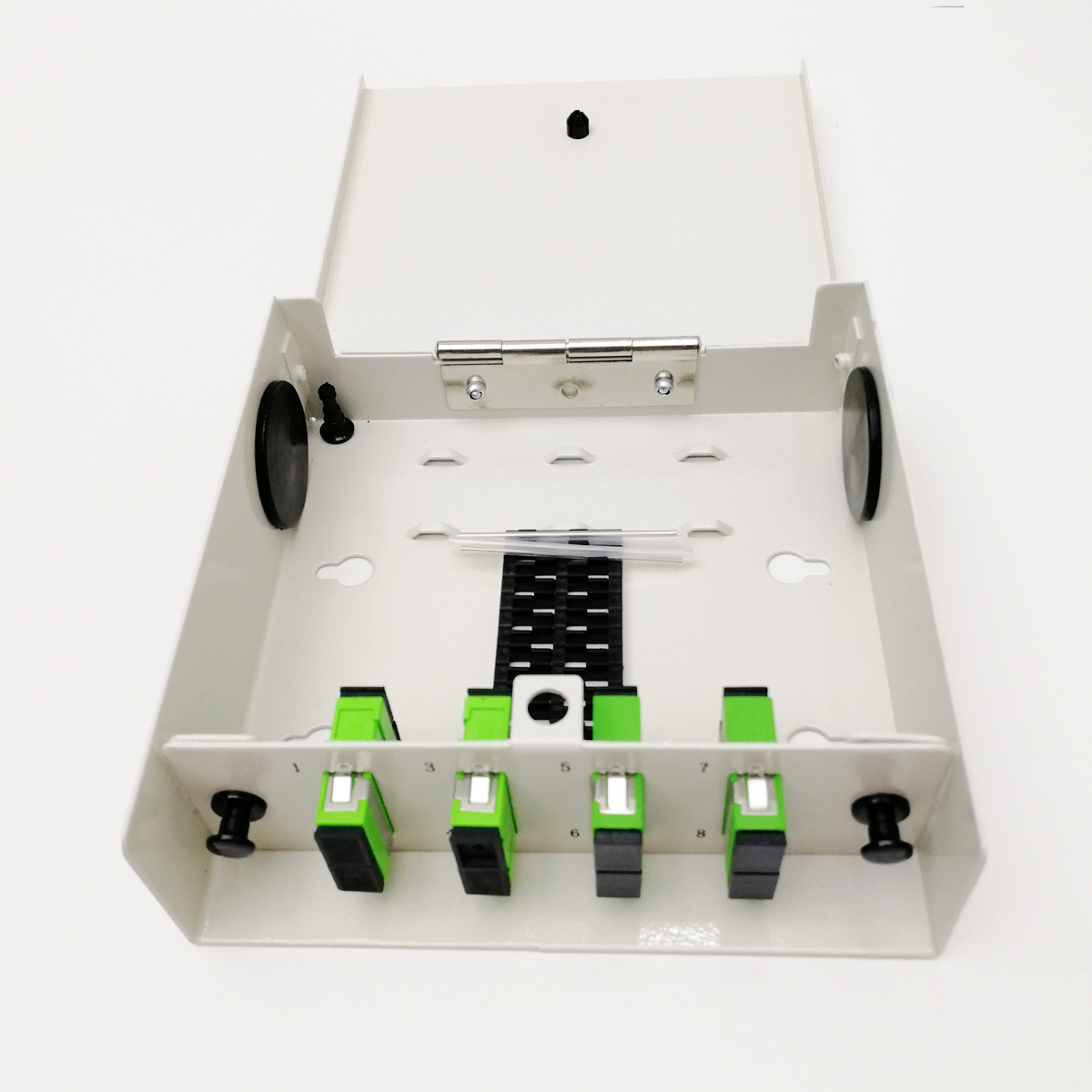

3C-OTB-08 (2)

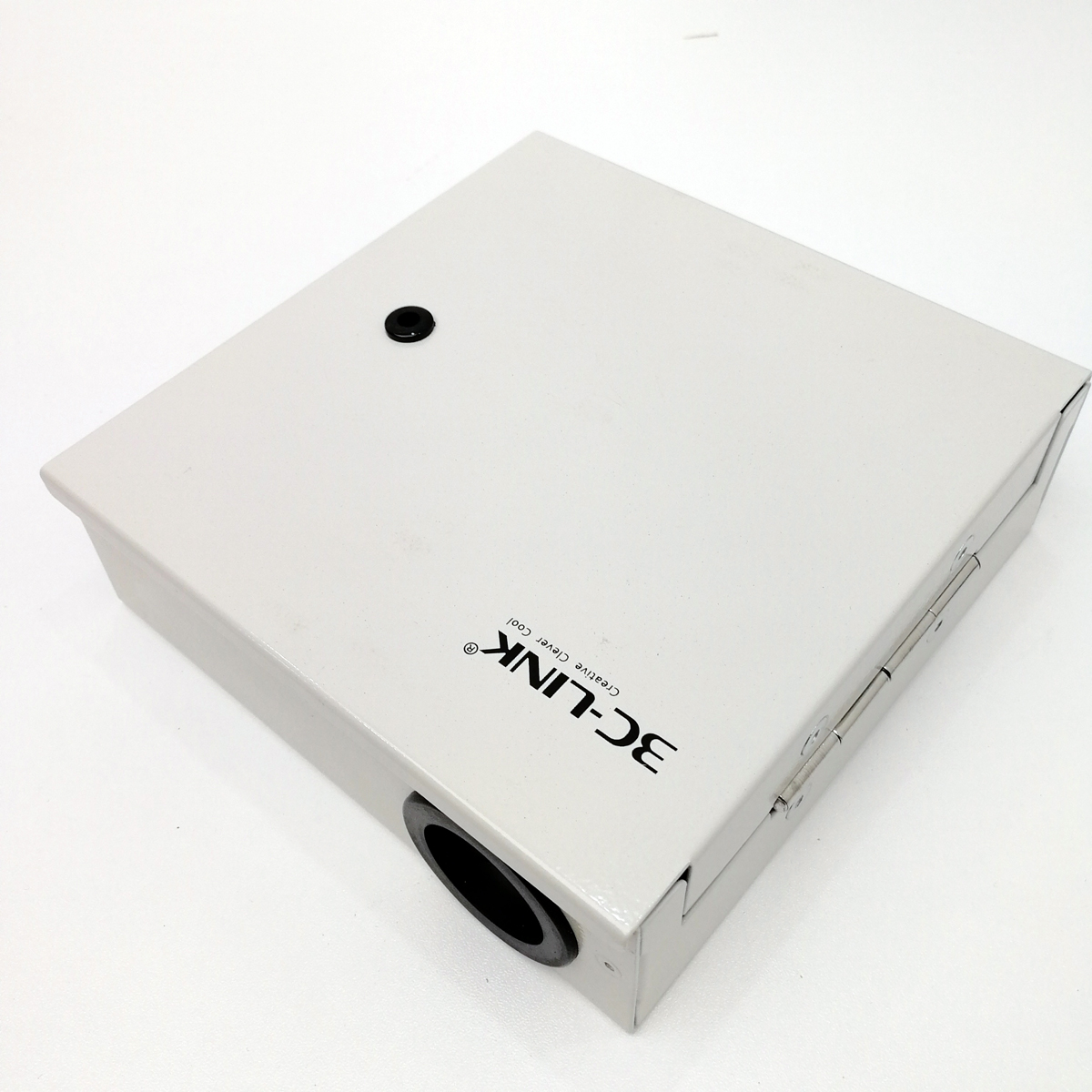

3C-OTB-08 (5)

8 Core FTTH Wall Mounted Terminal Box

Wall Mounted Fiber Optic Terminal Box 4 Fiber Ports SC LC is designed in a simply but effective way for low density fiber cablings. It is a cover and base box. It can be opened easily by pulling the plastic lock and it also can be disployed for 4 cores SC or 8 cores LC connections as per the FTTX application.

8 Core Metal Type FTTH Wall Mounted Terminal Box

Easy to patching, splicing and managing. Offering up to 8C fiber for work. Offering FC, SC, ST type panel.

Wall Mounted Fiber Optic Terminal Box Features and Specifications

Metal material, excellent appearance
Mainly installed SC LC fiber adapter
Reasonable designing, good protection for pigtail
Easy to installation and maintenance

Model 3C-OTB-08
Suitable Adapter SC, LC
Material  Aluminum or Steel
Weight(KG) 0.6
Available cable Indoor cable
Outlet 8Port
Cable Diameter  Φ15mm
Dimension (D*H*W) 150*45*155mm
Applications Wall Mount Distribution Use
Connector Capacity  8 pcs SC / 16 pcs LC connectors
Splitter Capacity  No
Indoor/Outdoor  Indoor
Locatoin of Use FTTH FTTB
Lock Compatible  Button
Number of Terminal Drops 2
Number of Trays 1pc 8 fiber splice chip
Splice Capacity  8 fiber
