10G-BI-DI

10G BI-DI SFP+ Transceiver

3C-LINK's SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet. 3C-LINK offers the whole series of 10G SFP+ fiber optic transceivers, including: SFP+ 10GBASE-SR 300M (SMF OM3)； SFP+ 10GBASE-LRM MMF 220M； SFP+ 10GBASE-LR SMF 10-20KM； SFP+ 10GBASE-ER SMF 40KM； SFP+ 10GBASE-ZR SMF 80KM； 18 Channels CWDM SFP+； 40 Channels DWDM SFP+； BIDI SFP+ ... ...

10G BI-DI SFP+ Transceiver

3C-LINK's SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm.

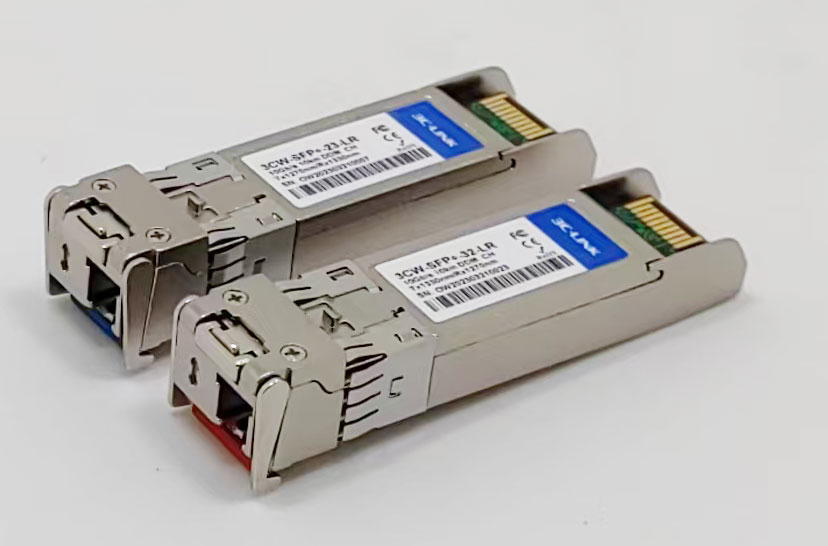

Model No 3CW-SFP+-23-LR Vendor Name 3C-LINK
Form Factor SFP+ Max Data Rate 11.3168Gbps
Wavelength 1270nmT/1330nm R Max Fiber Distance 10Km
Connector LC Simplex Fiber Type SMF
Transmitter Type DFB Receiver Type PIN
Typical Power Consumption < 1.4W Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.0~1dBm Receiver Sensitivity <-14dBm
Max Powerbudget 8dB Receiver Overload 0dBm
Bit Error Ratio (BER) 1E-13 Extinction Ratio >3.4dB
Application 10G Ethernet, CPRI Warranty 3 Years

Model No 3CW-SFP+-32-LR Vendor Name 3C-LINK
Form Factor SFP+ Max Data Rate 11.3168Gbps
Wavelength 1330nmT/1270nm R Max Fiber Distance 10Km
Connector LC Simplex Fiber Type SMF
Transmitter Type DFB Receiver Type PIN
Typical Power Consumption < 1.4W Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.0~1dBm Receiver Sensitivity <-14dBm
Max Powerbudget 8dB Receiver Overload 0dBm
Bit Error Ratio (BER) 1E-13 Extinction Ratio >3.4dB
Application 10G Ethernet, CPRI Warranty 3 Years


High Performance

Low power consumption <1W, saving power

100us typical latency, MTBF over over 1 million hours

Stainless steel material, anti-corrosion and salt spray resistance


Wide Application

Fully compatible with almost all Cisco devices

Widely used on 10G Ethernet switches, routers, servers, NICs and other transmission equipment

Suitable for Enterprise LAN Networks and other cooper networking connections


Protocols and Safety Standards

Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant

IEEE Std 802.3u and 802.3ab, SFP MSA Compliant

Lifetime Warranty

All the fiber optic products in 3C-LINK are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
