LC Uniboot patch cords are a specialized type of fiber optic patch cords that utilize a "single tube, dual core" structure, integrating two fibers within a single sheath to support duplex transmission. Compared to traditional LC patch cords, Uniboot cords offer higher space efficiency and more convenient polarity reversal functionality, making them ideal for high-density cabling environments such as data centers and telecommunications networks.

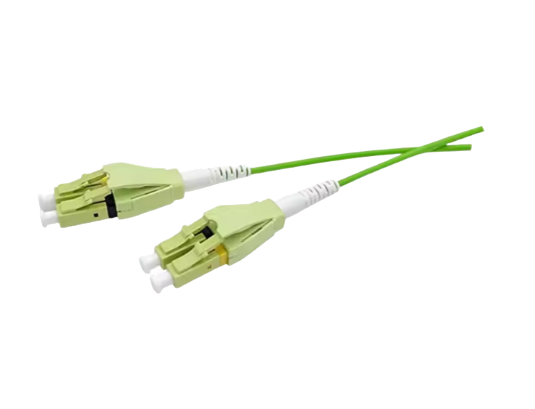

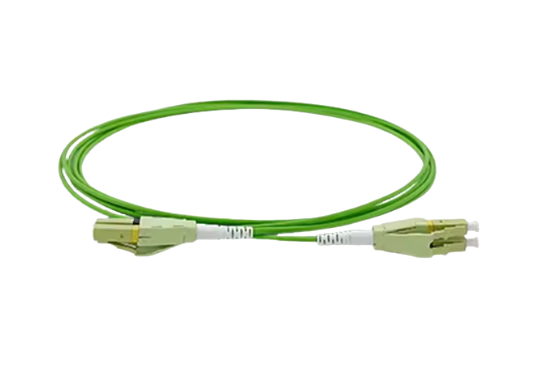

OM5 LC-LC Uniboot Duplex 2.0/3.0mm Multimode Fiber Optic Jumper
● Low loss and high echo ensure stable signal transmission.
● Reducing the space occupied by cabling optimizes rack utilization efficiency.
● Using LSZH material, it's suitable for complex environments.
● After more than 1000 plug and unplug tests, ensure stable long-term performance.
● Wide temperature range to adapt to various harsh environments.
 |
 |
 |
|
Zirconia Ceramic Ferrule The precision ferrules can reach up to 500 times insertion lifespan. |
20/10D Min. Bend Radius The OM5 fiber allows tighter cable bends for slack storage and routing. |
100-160N Tensile Strength The pull-resistant cable prevents cable breaking and prolongs the service life. |
| Fiber Type | OM5 50/125μm | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC to LC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥40dB |
| Repeatability | ≤0.3dB | Interchangeability | ≤0.3dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Grenn |
| 40G Ethernet Distance | 440m at 850nm | 100G Ethernet Distance | 150m at 850nm |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
