2 10/100/1000TX and 10 10G SFP Slots Managed Switch

*STP/RSTP/MSTP/ERPS rapid spanning tree protocols to eliminate Layer 2 loops and achieve link backup.
*IEEE 802.1Q VLAN, allowing users to flexibly divide VLANs as needed, including Voice VLAN and QinQ configuration.
*IGMP V1/V2 multicast protocols and IGMP Snooping, meeting the requirements for multi-terminal high-definition video surveillance and video conferencing access.
*Port isolation
*Port broadcast storm suppression.
*Diverse management and maintenance methods, including Web management, CLI (Console, Telnet), and SNMP (V1/V2/V3).
*Encryption methods such as HTTPS, SSLV3, and SSHV1/V2 for enhanced management security.
*RMON, system logging, and port traffic statistics for easier network optimization and upgrades.
*LLDP, facilitating network management systems to query and diagnose link communication status.
*CPU monitoring, memory monitoring, Ping detection, and cable length detection.
*Users can easily monitor device status through power indicators (PWR), system operation indicators (SYS), and port status indicators (Link, L/A).
*Provides relay alarm output ports and power failure alarm functionality.
*Integration with network security monitoring devices via SNMP, using both passive polling and active reporting methods to transmit switch online/offline information, MAC binding information, user login information, user modification information, configuration change information, and port up/down information to security monitoring devices, complying with power security access requirements.

Interface
Fiber Port	10*100/1000Base-X SFP
Ethernet Port	2*10/100/1000 Base－T
Manage Port	1*RJ45 Console port
Power connector	3P Phoenix terminal, dual power supply redundancy
LED Indicator	PWR (green); System indicator:SYS(green); Network port indicator:yellow(1000 or POE) Green (Link)
Cable type and distance
Twisted pair cable	0-100m (CAT5e, CAT6)
Single-mode fiber	20/40/60/80/100KM
Multimode fiber	550m/2KM
Optical fiber interface	LC/SC
Network topology & scale
Ring topology	Support
Star topology	Support
Bus topology	Support
Tree topology	Support
Hybrid topology	Support
Electrical characteristics
Input voltage	DC10-58V/AC 100-240V 50-60HZ
Power consumption	Non-POE full load (Total power) <10W
L2 Features
Exchange capacity	24G
Packet forwarding rate	17.88Mpps
MAC address table	16K
VLAN support and quantity	Support 4K
Report buffer	8M
Forwarding delay	<10us
Port characteristics	Cross-connect and direct-adaptive
Flow control	Support
Jumbo frame support	Support 10Kbytes
Spanning Tree Protocol	Support STP/RSTP/MSTP
Ring network protocol	Support ERPS
Link aggregation	Support 12 groups
Multicast	Support IGMP Snooping

Port mirroring	Support
Storm suppression	Support
Port traffic statistics	Support
Port flow system	Support
QINQ	Support
Protection	Shell: IP40 protection, aluminum alloy housing IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A IEC 61000-4-2 Level 4 (15KV/30KV) Free fall 0.5m
Convergence Service
ACL	Support 500 ACLs; Support IP standard ACL; Support MAC extended ACL; Support IP extended ACL;
QoS	Support QoS re-marking and priority mapping; Support SP, WRR queue scheduling; Support entry speed limit and exit speed limit; Support flow-based QoS
Management function
Command line	Support
Management serial port	Support
Telnet	Support
WEB management	Support
SNMP	Support SNMPv1/v2c
User management	Support
System log	Support
File upgrade	Support
Firmware upgrade	Support
SFP module DDM	Support
Environmental conditions
Working temperature		-40℃~+85℃
Storage/transport temperature		-40℃~+85℃
Relative humidity		5%~95% does not support condensation (non-condensing)
Cooling method		No fan design, natural heat dissipation
MTBF		100,000 hours

Mechanical structure

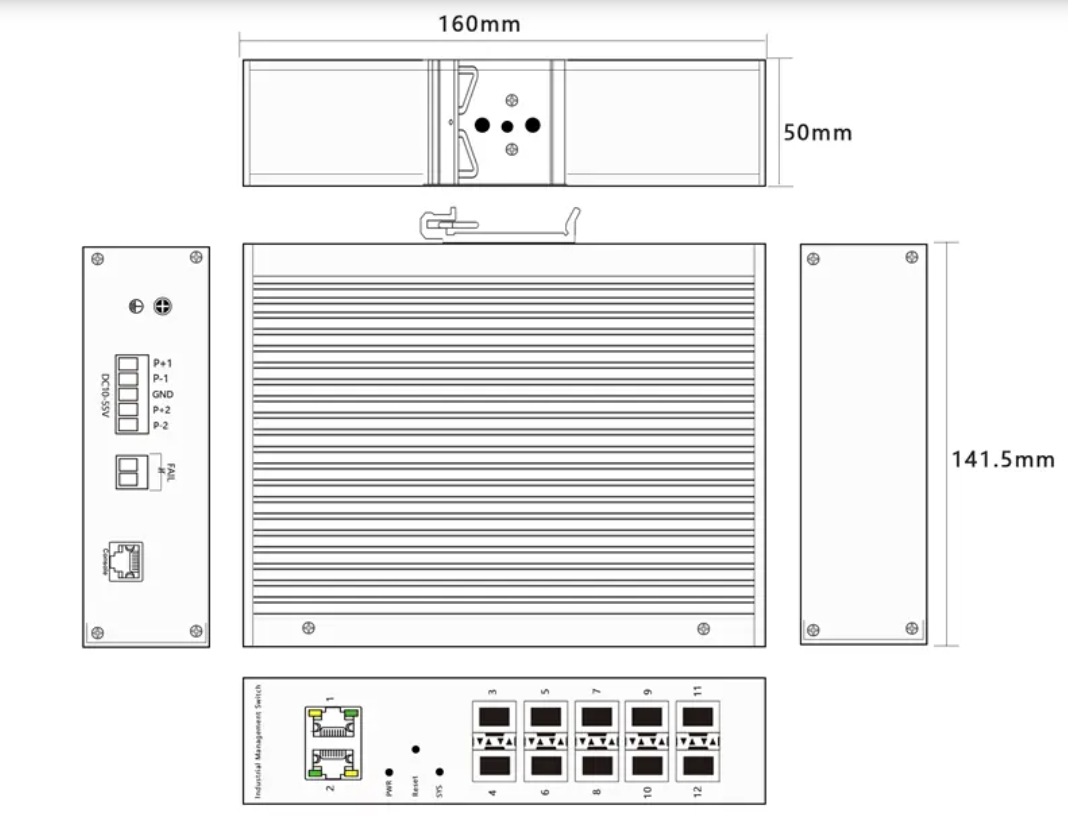

Size	181X146X47mm
Installation method	DIN Rail Installation
Weight	1.5KG


Intelligent Power	Intelligent Transportation	Industrial Internet	Smart Cities
Electric New Energy Mining	Urban Rail Digital Rail Airport/Harbor/Expressway	Intelligent Manufacturing Metals Production Environmental Protection	Digital Cities Utility Tunnel Energy Management

Model	Description

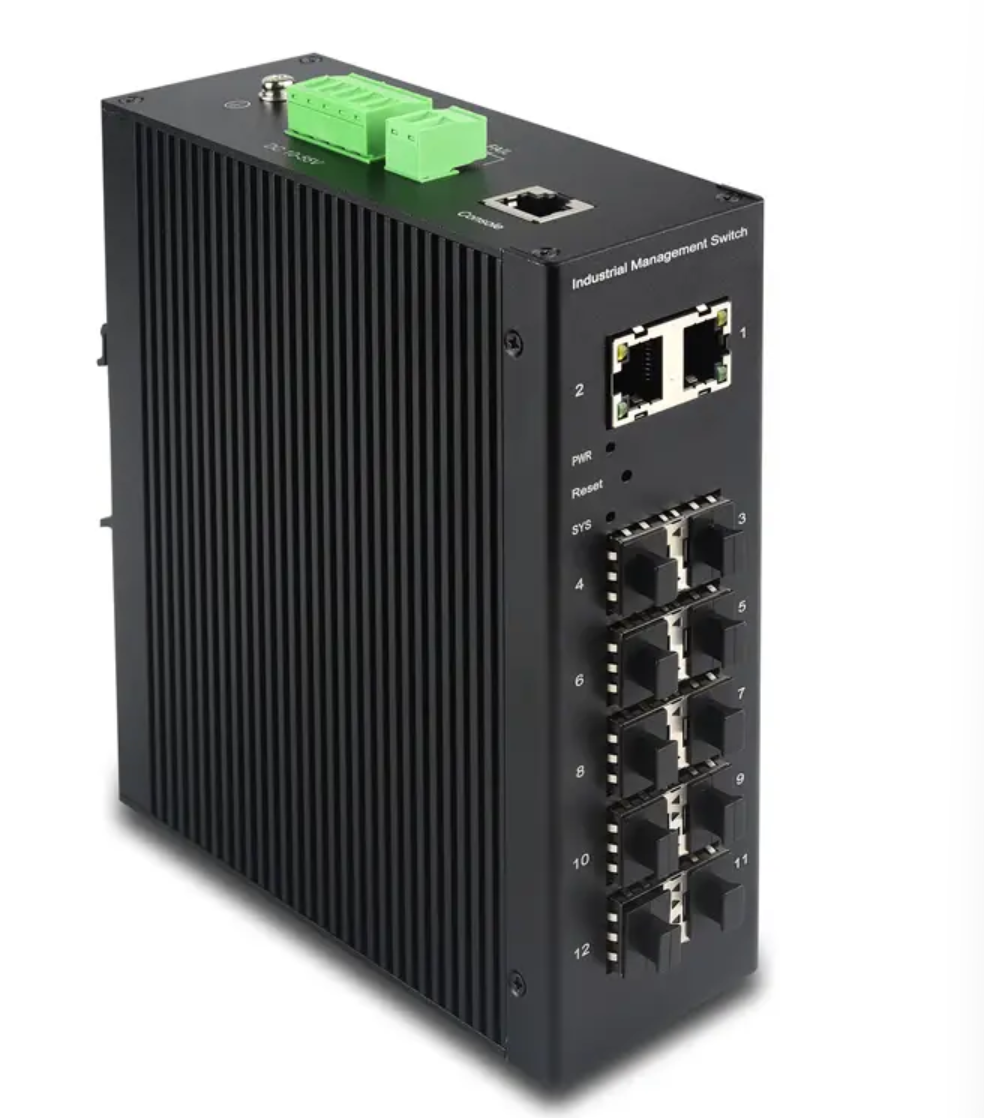

3CI-SFP1002TGM	L2 managed full 10G Ethernet core switch with 210/100/1000M Base-Tx and 101/10G SFP+ fiber slot ports. Industrial Ethernet Switch. DC12-48VDC is default.

PACKING LIST

PACKING LIST	CONTENT	QTY	UNIT
	12-port L2 10* 10G SFP Slot+ 2*10/100/1000M managed Ethernet core switch	1	SET
	Mounting Kits	1	SET
	User Guide	1	PC
	Warranty Card	1	PC
