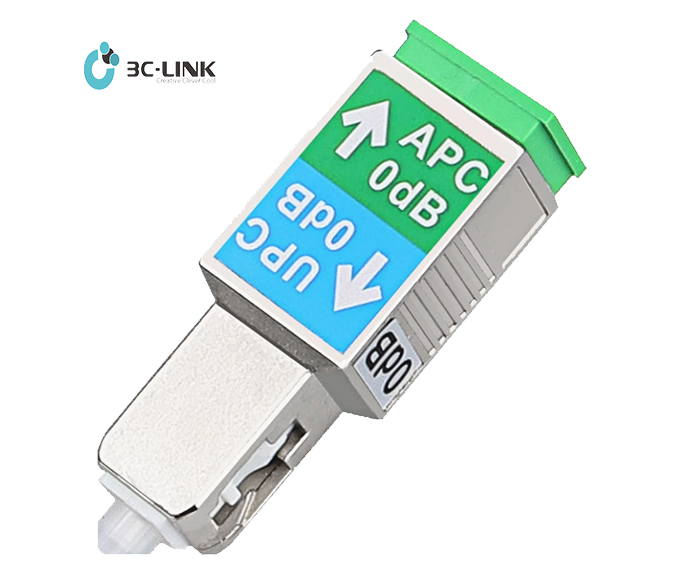

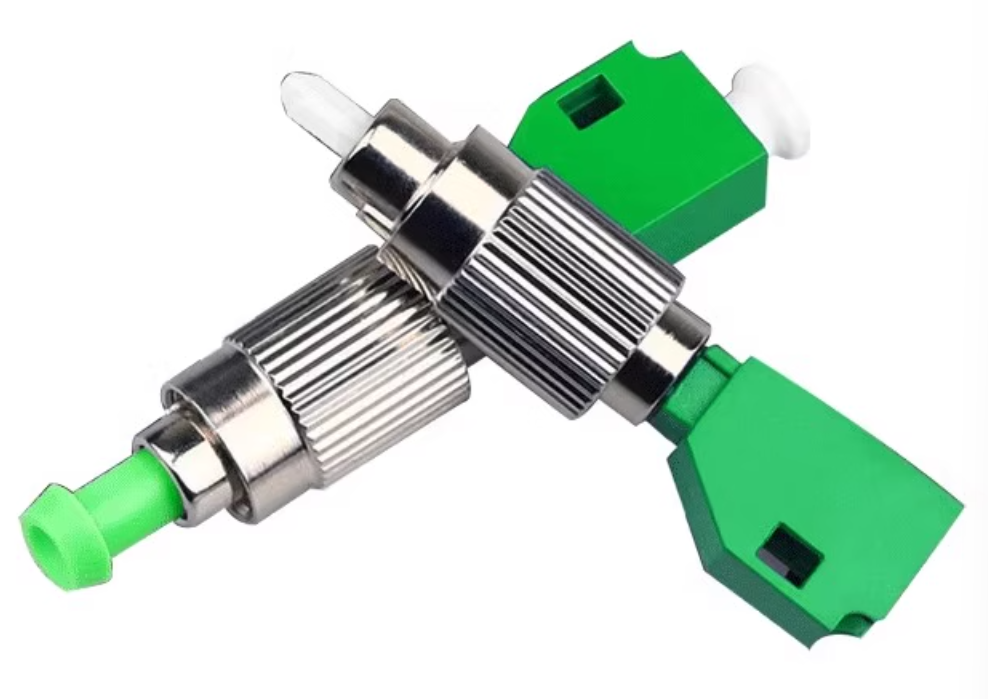

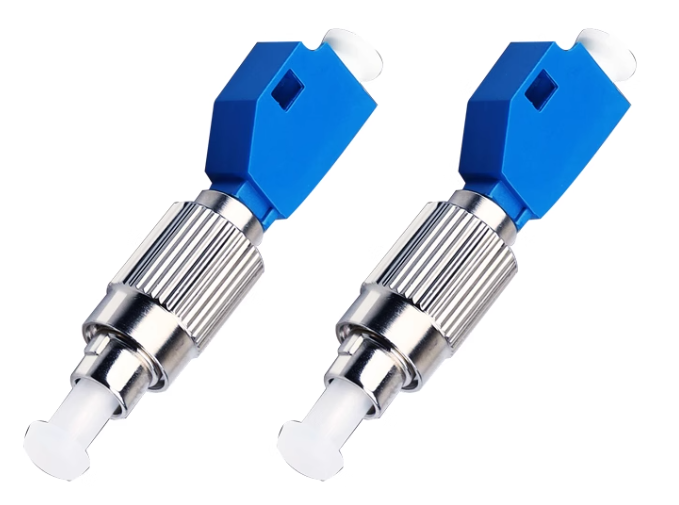

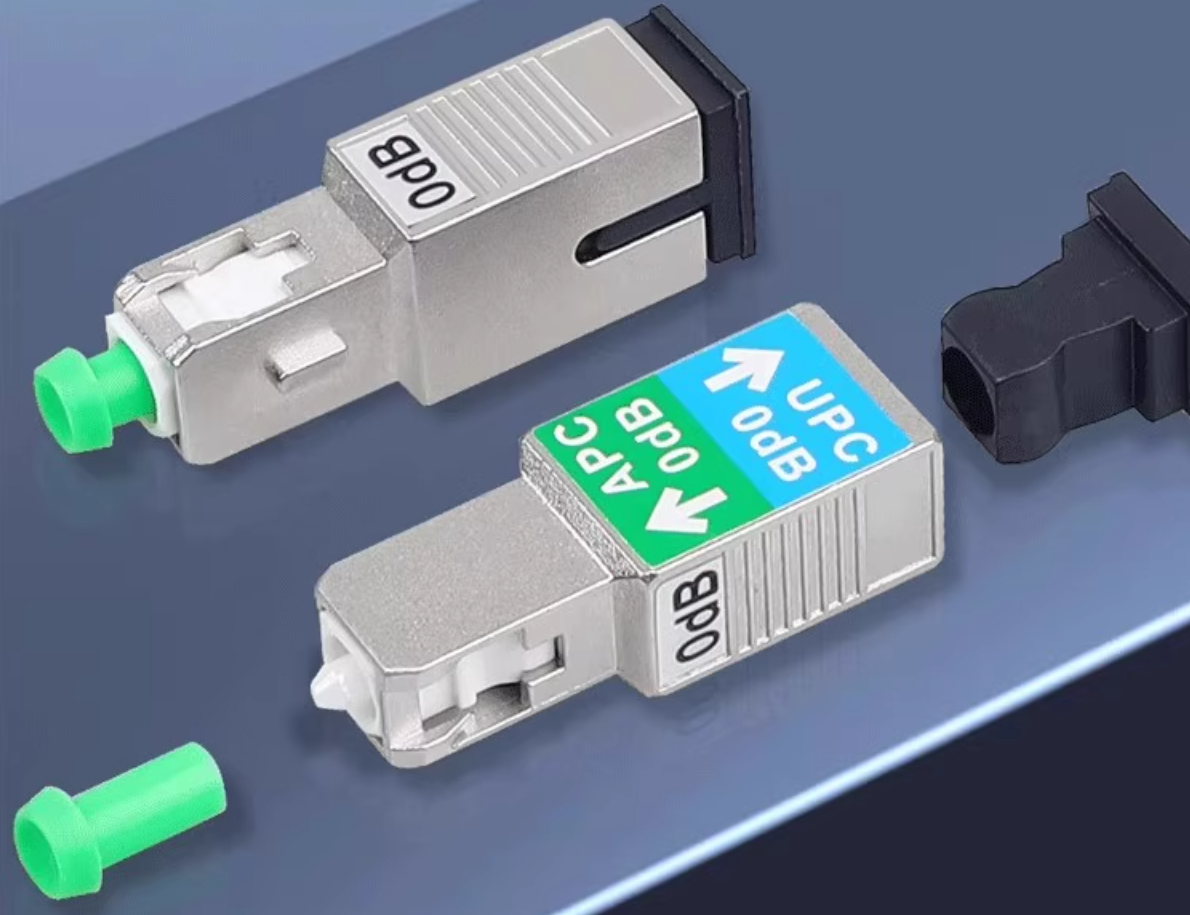

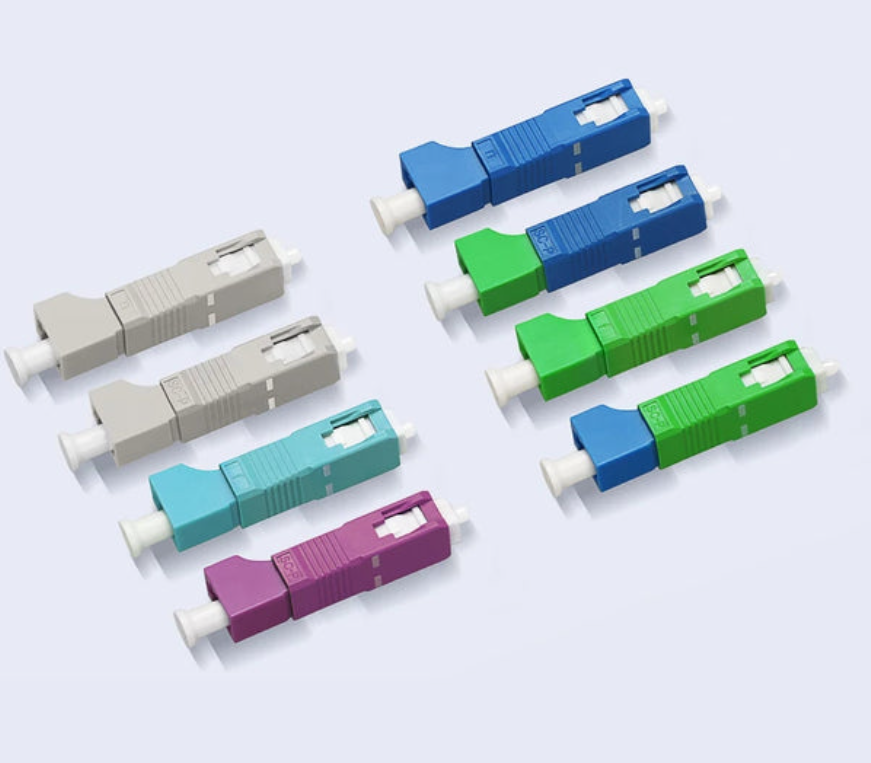

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor. This Adapter was different from ordinary adapter,the utility model is mainly used for connecting two ends with different inserting core diameters.
Fiber Type: SM (9/125), MM (50/125, 62.5/125) Application Mode: SM, MM, APC Insertion Loss: 0.3dB or lower Return Loss: 55dB or more UPC; 65dB or more APC IEC: IEC 61754-20
Parameters |
FC,SC, LC, ST, MU, DIN, E2000, MTRJ, Hybrid |
| Attenuation Range | 2dB ~ 40dB |
| Operation Wavelength | SM: 1260-600nm, or 1310nm/1550nm |
| MM:850nm, 1310nm | |
| Return Loss | ≤50dB (PC) |
| ≤55dB (UPC) | |
| ≤65dB (APC) | |
| Attenuation Accuracy | ±0.5dB (1 ~ 10 dB) |
| ±10% of Attenuation Value (11~40 dB) | |
| Polarization Dependent Loss (PDL) | ≤0.2dB |
| Exchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Durability | ≤0.2dB Typical 1000 matings |
| Maximum Optical Input Power | 200mW |
| Operating Temperature | -20 ~ +75 degree centigrade |
| Storage Temperature | -40 ~ +85 degree centigrade |
