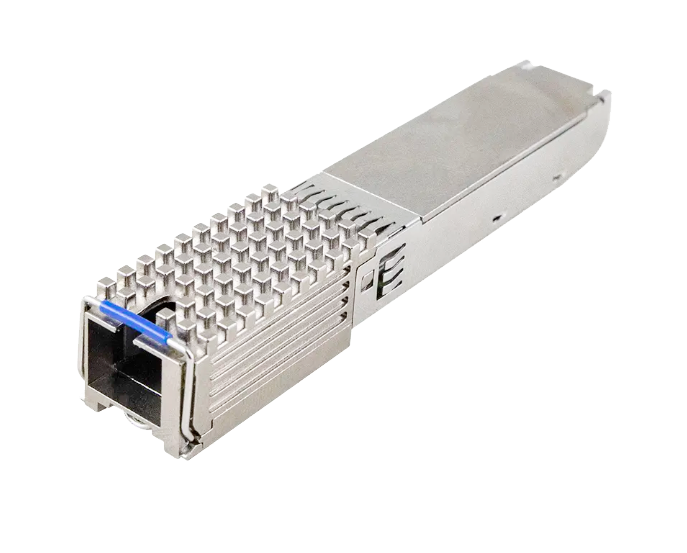

3C-SFP+OLT-LR is our complete OLT STICK based on SFP+ package with built-in PON MAC function, designed to solve the problem of rapid upgrade from traditional data communication network equipment to all-optical network equipment. the OLT SFP MAC Sticker can plug into any 3C-LINK Ethernet device become OLT. Through flexible module design, convenient port configuration is achieved, precisely adapting to the business requirements of different scenarios.
3C-LINK GPON STICKER OLT is fully compatible with SFP's multi source protocol MSA and SFF 8472 standards (for more information, refer to SFP MSA). Fully meet the G.984 standard defined by ITU-T,and meet the technical requirements of operators for GPON device. GPON Sticker OLT SFP+ is one of the mini-PON products that's designed for maximum flexibility and delivers quickest time to market for applications that require cost effective fiber access without the need for a purpose built terminal. It can be inserted directly into the SFP slot of an uplink port in any terminal to deliver bandwidth and transport services over a standard compliant GPON network.

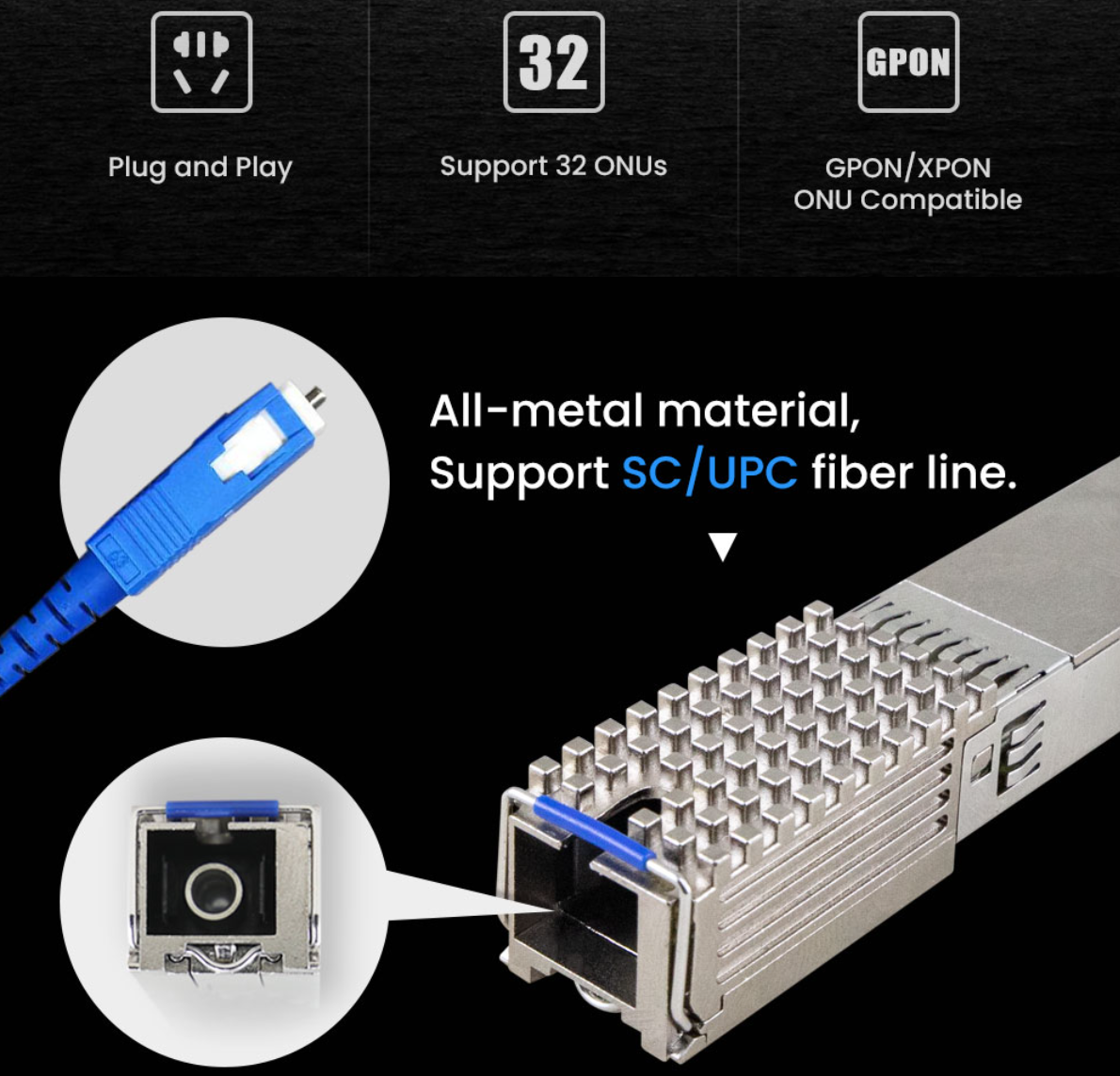

* Interfaces and Functions: SFP+ package, SC interface, supports hot plugging.
* Transmission and Power Consumption: Supports a single-mode optical fiber transmission distance of 8 kilometers, with low power consumption (＜2.5w).
* Environmental adaptabilit: The enclosure temperature range is -40C to 85°C, and the working humidity range is 5% to 95% (non-condensing).
* Terminal support: Supports up to 32 ONU terminals at most.
* Network compatibilit: Compatible with the vast majority of HGU type ONUs on the market, supporting transparent transmission of SVLAN and CVLAN.
* Compatible with any third-party switches, routers and firewalls with oplical ports.
* The self-developed PC-based management software can quicky and efficiently query and manage small networks through local area networks. It is easy to operate and does not require professional network knowledge.
* The matching 1-port, 2-port and related switch products can assist customers in quickly forming micro OLT, mini OLT, embedded OLT and other related types of OLT to meet the needs of different scenarios, such as FTTR, FOL all-optical network, CCTV security.
* Support API interface expansion to make it easier for customers to develop their own management software, such as APP management.
* Pure bridge mode enables transparent transmission of all types of VLAN data.
| Item | Parameter |
|---|---|
| Product model | 3C-SFP+OLT-LR |
| Down link rate | 2.448Gbps, with GPON MAC functionality |
| Uplink rate | 1.244Gbps, with GPON MAC function |
| Wavelength | 1490T/1310R nm |
| The max ONU | 32 |
| Power supply | 3.3V |
| Power dissipation | <2.5W |
| Optical power | -2 to 2dBm, typical value: 0dBm |
| Sensitivity | <28dBm |
| Net weight | 0.05kg |
| Rough weight | 0.1kg |
| Package size | 100mm x 15mm x 25mm |
| Product size | 75mm x 12mm x 22mm |
| The working temperature range of the casing | -40°C~75°C |
