3C-LINK EDFA is the erbium-doped fiber amplification board. Its main function is to compensate the power of the signal optical in the transmission line, and it can amplify the optical signals of up to 48 channels with 100 GHZ’s interval) or 96 channels with 50 GHZ’s interval) at C band at the same time. It has characters of flat gain, locked gain, low noise index, etc. It’s an indispensable and important component for DWDM system, future high speed system and all-optical network long-distance transmission.

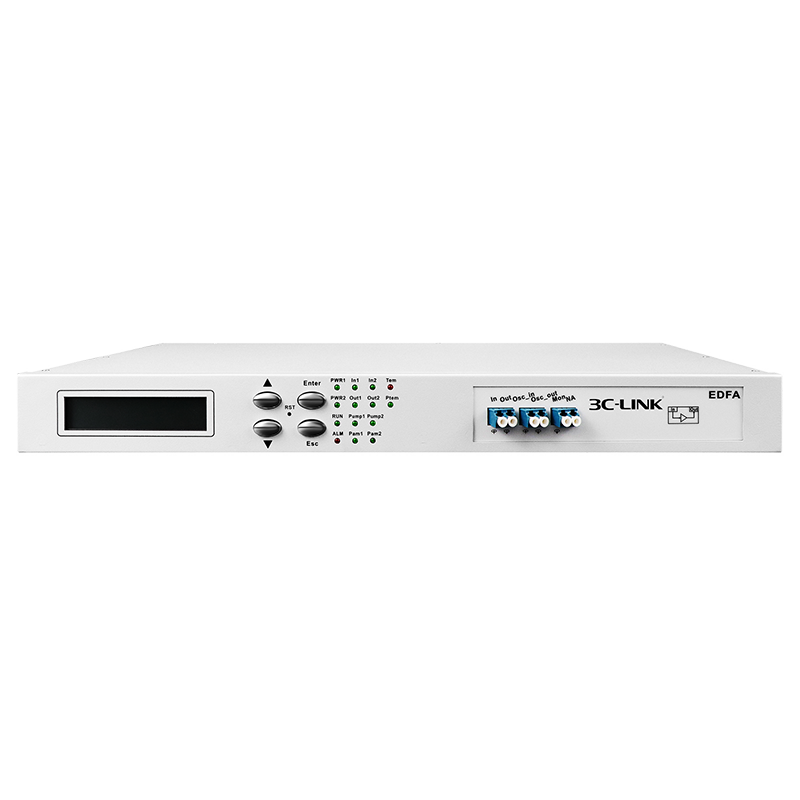

3C-LINK standalone 19inch Rack type EDFA Optical Amplifier is low-noise, gain-flattened C-band optical erbium doped fiber amplifier (EDFA) designed to cost-effectively extend the optical link power budget for building long distance solutions.
|
Product Name |
Power amplifier（BA） 3C-EDFA-BA |
|||
|
Parameter |
Min |
Typical |
Max |
Unit |
|
Operating Wavelength |
1529 |
1550 |
1564 |
nm |
|
Input power |
-14 |
|
5 |
dBm |
|
Gain |
|
15 |
|
dB |
|
Output power |
|
|
20 |
dBm |
|
Gain flatness |
|
0.6 |
1.5 |
dB |
|
Noise figure |
|
5.0 |
|
dB |
|
Input/output Isolation |
30 |
|
|
dB |
|
Output Pump leakage |
|
|
-30 |
dBm |
|
Input/output return loss |
45 |
|
|
dB |
|
polarization dependent loss |
|
|
0.5 |
dB |
|
Polarization mode dispersion |
|
|
0.5 |
ps |
|
Operating Temperature |
-5 |
|
55 |
℃ |
|
Humidity |
5 |
|
95 |
% |
|
Storage Temperature |
-40 |
|
85 |
℃ |
|
power consumption |
|
|
30 |
W |
|
Power |
-48V DC or 220V AC |
V |
||
|
Interface |
LC/UP or others |
|
||
|
Dimension |
(W x L x H) 482.6x245x43.6 |
mm |
||
|
Product Name |
Line amplifier（LA）3C-EDFA-LA |
|||
|
Parameter |
Min |
Typical |
Max |
Unit |
|
Operating Wavelength |
1529 |
1550 |
1564 |
nm |
|
Input power |
-25 |
|
-7 |
dBm |
|
Gain |
|
25 |
|
dB |
|
Output power |
|
|
16 |
dBm |
|
Gain flatness |
|
0.6 |
1.5 |
dB |
|
Input/output Isolation |
30 |
|
|
dB |
|
Output Pump leakage |
|
|
-30 |
dBm |
|
Input/output return loss |
45 |
|
|
dB |
|
polarization dependent loss |
|
|
0.5 |
dB |
|
Polarization mode dispersion |
|
|
0.5 |
ps |
|
Noise figure |
|
5.0 |
|
dB |
|
Operating Temperature |
-5 |
|
55 |
℃ |
|
Humidity |
5 |
|
95 |
% |
|
Storage Temperature |
-40 |
|
85 |
℃ |
|
power consumption |
|
|
30 |
W |
|
Power |
-48V DC AND 220V AC |
V |
||
|
Interface |
LC/UPC or others |
|
||
|
Dimension |
(W x L x H) 482.6x245x43.6 |
mm |
||
|
Product Name |
Pre-apmlifier（PA）3C-EDFA-PA |
|||
|
Parameter |
Min |
Typical |
Max |
Unit |
|
Operating Wavelength |
1529 |
1550 |
1564 |
nm |
|
Input power |
-30 |
|
-7 |
dBm |
|
Gain |
|
25 |
|
|
|
Output power |
|
|
16 |
dBm |
|
Input optical power threshold |
-30 |
|
-40 |
dBm |
|
Noise figure |
|
5.0 |
|
dB |
|
Gain flatness |
|
0.6 |
1.5 |
dB |
|
Input/output Isolation |
30 |
|
|
dB |
|
Output Pump leakage |
|
|
-30 |
dBm |
|
Input/output return loss |
45 |
|
|
dB |
|
polarization dependent loss |
|
|
0.5 |
dB |
|
Polarization mode dispersion |
|
|
0.5 |
ps |
|
Operating Temperature |
-5 |
|
55 |
℃ |
|
Humidity |
5 |
|
95 |
% |
|
Storage Temperature |
-40 |
|
85 |
℃ |
|
Power consumption |
|
|
30 |
W |
|
Power |
-48V DC AND 220V AC |
V |
||
|
Interface |
LC/UPC or others |
|
||
|
Dimension |
(W x L x H) 482.6x245x43.6 |
mm |
||
