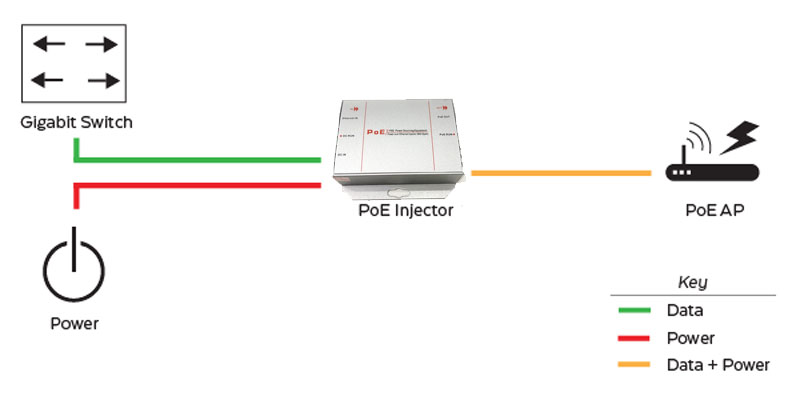

Unmanaged model, plug and play, no configuration required, easy to use. PoE injector provides a simple, economical, high-performance, intelligent solution for PoE power over Ethernet and data communication. Simple to use, easy to install, superior in performance and cost-effective, it is an ideal choice for customers to improve the quality of their projects. Under the condition that the power supply cannot be provided remotely, the traditional power line network can be expanded, the use of power lines can be reduced, and the construction cost and maintenance cost of the project can be effectively reduced.
FEATURE
Gigabit Ethernet port (1 Ethernet in and 1 Ethernet out ) easy to connect
◇ Support non-blocking wire-speed forwarding.
◇ Using 1 Ethernet in and 1 Ethernet out connection mode, 1*10/100/1000Mbps RJ45 port, convenient connection, and simple maintenance.
Smart PoE power supply function
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ 1*10/100/1000Base-T RJ45 port support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Support desktop and wall-mounted installation.
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, PoE.
◇ Low power consumption, active fan cooling design, metal casing to ensure stable operation of the product.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
TECHNICAL SPECIFICATION
| Model |
3C-PSE101G |
3C-PSE101G-at |
| Interface Characteristics |
| Fixed Port |
1*10/100/1000M PoE port (Data/Power)
1*10/100/1000M uplink RJ45 port (Data) |
| Ethernet Port |
10/100/1000Base-T(X) auto-sensing, Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter) |
| Network Protocol and Indicator |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3 |
| LED Indicator |
Power: PWR (Green), POE: PoE (Green) |
| PoE & Power Supply |
| PoE Port |
IEEE802.3af/at @ POE |
| Power Supply Pin |
1/2 (+) 3/6 (-) |
| Max Power Per Port |
15.6W, IEEE802.3af |
30W, IEEE802.3at |
| Total PWR / Input Voltage |
18W/32VDC |
35W/32VDC |
| Power Consumption |
Standby<3W, Full load<15W |
Standby<3W, Full load<30W |
| Power Supply |
External power supply, DC input voltage: 12-32V |
| Physical Parameter |
| Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity |
-40~+80°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) |
77.5*76.5*27mm |
| Net /Gross Weight |
<0.12kg /<0.2kg |
| Installation |
Desktop, Wall-mounted |
| Certification & Warranty |
| Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty |
1 year, lifelong maintenance. |
