400G-TO-100G-Card

400G to 4* 100G Transponder Card

3C-DCI-OTMF is a 400G DCI Transponder Card for 3C-OTNS8600-DCI4/8, which is designed for building high-capacity optical transport networks. Its flexible architecture with a 4x QSFP28 client interface enables the same device to be used in multiple applications. It supports 400GbE services in transponder operation modes, combining different protocols and rates over a single 400G CFP2-DCO coherent uplink.

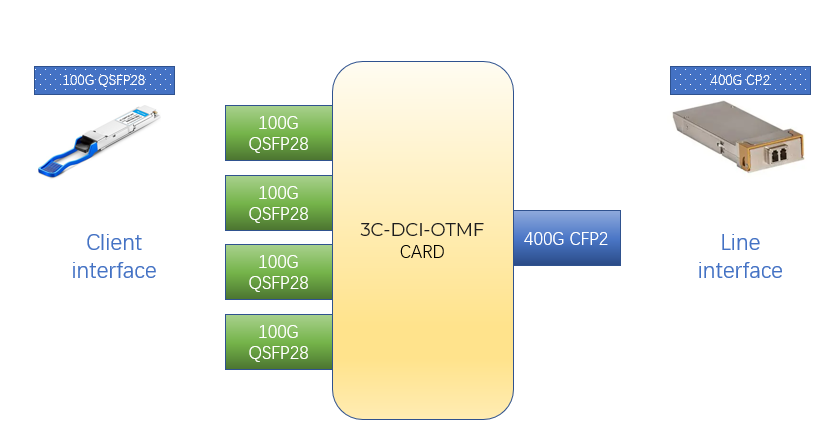

3C-DCI-OTMF 400G CFP2 to 4*100G QSFP Card

Suitable for transmission over metropolitan networks and long-distance networks up to 600 km Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc. Suitable for 400G links in existing OTN/DWDM infrastructure

3C-DCI-OTMF multi-protocol transponder card is designed for building high-capacity optical transport networks. Its flexible architecture with a 4x QSFP28 client interface enables the same device to be used in multiple applications. It supports 400GbE services in transponder operation modes, combining different protocols and rates over a single 400G CFP2-DCO coherent uplink.


It allows maximum flexibility and scalability for fiber optic connectivity in wavelength division multiplexing (WDM) and dark fiber applications. It provides ideal solutions for enterprise, data center, campus, and metro networks.

Features

●       400G High Capacity for 200KM Long Haul Transmission
●       Support SD-FEC Error Correction
●       PM-16QAM (400G, 200G) Modulation Formats
●       Support NMS Management for Flexible Operation
●       Support DCI, Metro Systems



Technical Specifications

Characteristic Description
Occupied Slots Number Occupy 1 Slot
Max. Slots per Chassis 4 for 3C-OTNS8600-DCI4  and  8 for 3C-OTNS8600-DCI8
Client-side Interface 4 x 100G QSFP28
Line-side Interface 1 x 400G/200G CFP2-DCO
Line-side Signal and Multiplexing Structure 200G: OCh <-> OTUC2 <-> ODUC2 <-> ODU4
400G: OCh <-> OTUC4 <->ODUC4 <-> ODU4
Client-side Signal and Mapping Method 100GE <-> ODU4
Line-side Modulation Format 200G:16QAM
400G:16QAM
FEC Mode 200G: SD-FEC
400G: SD-FEC
