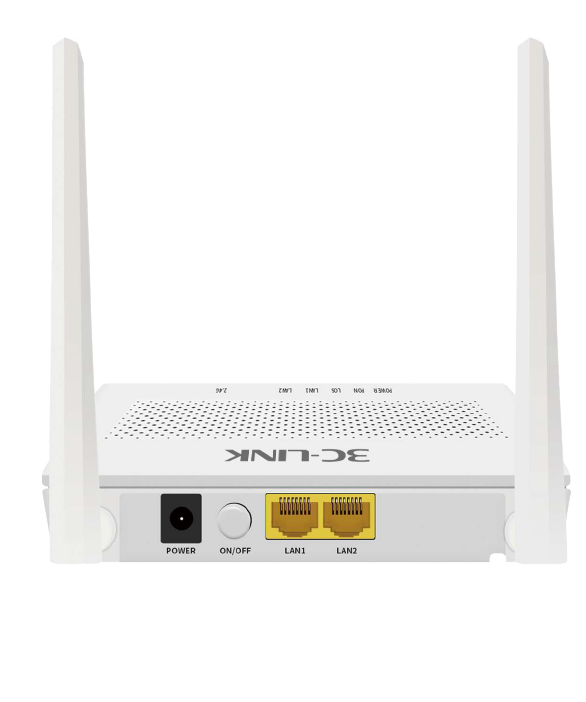

1GE+1FE+WIFI XPON ONU

3C-ONU-X110W ONU supports EPON/GPON/XPON three modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/EPON/XPON adaptive access. 3C-ONU-X110W have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

1GE+1FE+WIFI XPON ONU

3C-ONU-X110W is for broadband access market based on the introduction of EPON & GPON technology passive optical network terminal products. It’s with EPON/GPON OLT are used together to provide a complete broadband access solution.

3C-ONU-X110W supports EPON/ GPON/ XPON three modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/ EPON/ XPON adaptive access.

3C-ONU-X110W have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

3C-ONU-X110W integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.



PRODUCT FEATURES

  • In compliant with3ah and ITU – T G.984 standard
  • Support ONU auto-discovery/Link detection/remote upgrade of software
  • Meet 11 b/g/ntechnical standards
  • Support VLAN transparent, tag configuration
  • Support multicast function
  • Support DHCP/Static/PPPOE internet mode
  • Support port-binding
  • Support OAM/OMCI+TR069 remote management
  • Support data encryption and decryption function
  • Support Dynamic Bandwidth Allocation (DBA)
  • Support MAC filter and URL access control
  • Support power-off alarm function ,easy for link problem detection
  • Specialized design for system breakdown prevention to maintain stable system
  • EMS network management based on SNMP ,convenient for maintenance
Item Parameter
Interface EPON/GPON Interface SC/UPC single mode single fiber

GPON:FSAN G.984.2 standard, Class B+

EPON:1000BASE-PX20+ symmetric

GPON:2.488Gbps/1.244Gbps downstream/upstream

EPON:1.25Gbps downstream/upstream

Wavelength: Transmit: 1310nm  Receiver: 1490nm

Receiving sensitivity : GPON:-28dBm  EPON:-27dBm

Saturated power : GPON:-8dBm   EPON:-3dBm

Transmitting power : GPON:0.5~5dBm  EPON:0~4dBm

Ethernet Interface 1*10/100/1000M and 1*10/100M auto-negotiation

Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface 12V DC Power supply
Network Management Management Mode OMCI, OAM, TR069, WEB, Telnet
Management
Function
Status monitor, Configuration management, Alarm management, Log management
Physical Features Power <4W, 12V/0.5A power supply adapter
Physical
Specifications
Item Dimension:228mm(L) x108mm(W) x 28mm (H)

Item Net Weight:about 136g

Environmental
Specifications
Operating temperature: 0 to 40ºC
Operating humidity: 10% to 90%(Non-condensing)

 WIFI Specification



Item Parameter
Performance  parameters Operating Mode Router or bridge
Technical standard IEEE802.11b/g/n
Frequency 2.412 ~ 2.472 GHz
Antenna gain 5dBi
Support rate 802.11b: 1, 2, 5.5, 11Mbps

802.11g: 6, 9, 12, 24, 36, 48, 54Mbps

802.11n: max rate 300Mbps

Channel 2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12,13
Modulation mode 11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11g:OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps)

Q64QAM(48/54Mbps)

11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM

 Receive sensitivity 11Mbps:≤-90dBm

54 Mbps:≤-76dBm

HT20 MCS7:≤-73dBm

HT40 MCS7:≤-70dBm

Transmit power 802.11n: 17dBm
Encryption mode AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK
