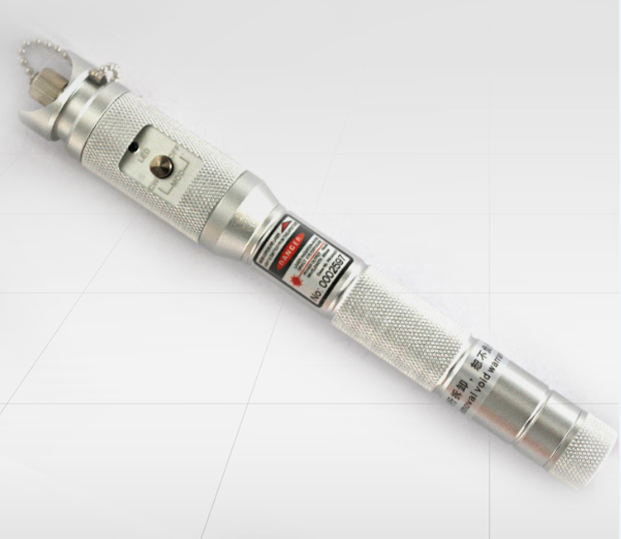

Fiber Optic Visual Fault Locator 3C-VFL-02

3C-VFL-2S This type VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. It finds breakpoints, poor connections, bending or cracking in fiber optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fiber identification.

Fiber Optic Visual Fault Locator

2.5mm universal connector Low battery warning Long battery life (up to 60 hours) Drop-resistant and dust-proof design of laser head

Fiber Optic Visual Fault Locator, Fiber Fault Detector

2.5mm universal connector, for 1.25mm connectors,
FC(male)-LC(Female) adapter also can be provided on request
Operates either in CW or Pulsed mode with constant output power
Low battery warning
Long battery life (up to 60 hours)
Drop-resistant and dust-proof design of laser head

Model 3C-VFL-2S
Central wavelength 650nm±10nm (635nm is available on request)
Emitter type FP-LD
Output power 5mw 10mw 20mw 30mw 40mw 50mw
Laser Range ≥5km ≥10km ≥20km ≥30km >35km >40km
Optical connector 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request
Operating model Both CW and Pulse available
Pulse frequency 2Hz to 3Hz / 9Hz
Power supply 2AA alkaline batteries
Operating temperature -20°C to 60°C
Storage temperature -40°C to 85°C
Dimension 25 x 195mm
Weight 175g (without battery)
