3C-OTDE-25G

4CH 25G OEO TRANSPONDER CARD

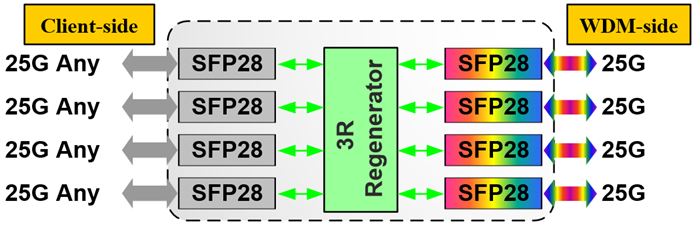

The 3C-LINK DWDM solution offers a high capacity, high performance platform that is open, scalable and highly programmable 3C-ONC-OTDE is a 4-channel 25 G service access card launched by 3C-LINK; its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 25 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for 25G rate services.Compatible with 16G or 32G FC.

25G SFP28 OEO Card

It’s applicable to the wavelength division transmission solution for 25G rate services.Compatible with 16G or 32G FC

3C-ONC-OTDE 25G OEO converter is used in Telecommunication room, R&D laboratory, Data center or even 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion. It supports multi-protocol 25G data rates including 16G/32FC  Ethernet, SFP28 to SFP28 Optical-Electrical-Optical type media converter / repeater. They are for connection between fiber to fiber 24Gbps equipment function as fiber mode converter/repeater for long distance transmission.

The max support 4Ch two-way 25G OEO Data.





Product Model 3C-ONC-OTDE
Basic function *  It supports bidirectional transmission of 4-channel services with 25G rate
*  It supports unidirectional transmission of 8-channel services with 25G rate
Access service type * 25GE
* FC16,32
* ECPRI:24.33 Gbit/s
Occupied slot number Occupy 1 slot, applicable to the platform of the whole 3C-OTNS 8600 series
WDM technology Support DWDM: C Band, 100GHz or 50GHz
Support CWDM：1271nm~1611nm
3R technology Support 3R function:Re-amplifying, Retiming, Re-shaping
Network management function * Support real time monitoring for port working state, including: transmitting optical power, receiving optical power, temperature, etc
* Support setting for the working rate of ports
* Support port loopback and port shutdown
interface It supports 8 pluggable optical port SFP28
Typical power consumption 20 W
MTBF > 100000 hours
