Armored Patch Cords

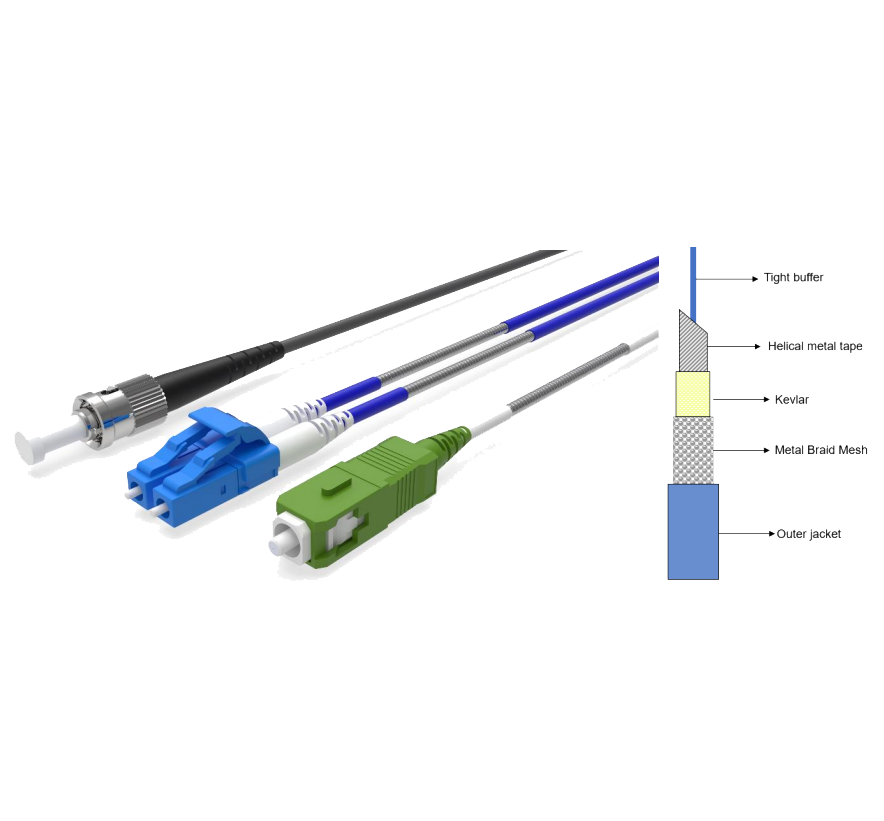

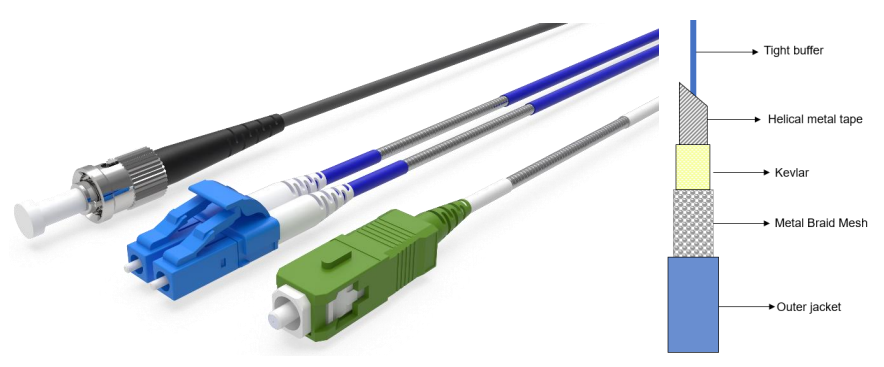

Armored Patch Cords are suitable for harsh environmental conditions without the need for additional protection. They are typically used in industrial environments, outdoor to indoor telecommunication networks, FTTx, FTTH and some critical applications. The patch cords provide sturdy interconnectivity to active equipment, passive optical devices and cross-connects. Armoured patch cords come double armoured with steel tape for better crush resistance and steel mesh for better tensile strength. Through this they have a high durability and a good crush resistance to ensure a longer life.

Armored Patch Cords

Double armour with high durability and good crush resistance Available in standard Singlemode and Multimode fibre LC, SC, FC AND ST connector type

Features

• Low insertion loss
• Double armor with high durability and good crush resistanc
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment





Zirconia Ceramic Ferrule

The precision ferrules can reach up to 500 times insertion lifespan.

10/5D Min. Bend Radius

The G.657.A1 fiber allows tighter cable bends for slack storage and routing.

100-160N Tensile Strength

The pull-resistant cable prevents cable breaking and prolongs the service life.

Specification

  Fiber Type 9/125µm Singlemode OS2 Fiber Count Duplex (2-fiber)
  Connector Type SC to SC Polish UPC to UPC
  Cable Length  1m,2m,3m … 50m or Customize Cable Diameter 2.0 mm
  Tensile Strength 70 N Length Tolerance +/- 1cm
  Insertion Loss ≤0.2dB Return Loss ≥50dB
  Repeatability ≤0.2dB Interchangeability ≤0.2dB
  Jacket Material PVC (OFNR riser-rated) Jacket Color Yellow
  Environment Operating: -20°C to 70°C
Storage: -40°C to 85°C		 Compliance Telcordia GR-326-CORE
RoHS compliant
  Application Optical fiber communications system
Optical fiber access networks
Optical fiber CATV
Optical fiber test equipment
Optical fiber data communication		  Application Premises Distribution
Local Area Networks (LAN)
Fiber-to-the-Home (FTTX)
Device Terminations
