1FX+7TX-100M
1FX+7TX-100M-SFP

10/100M 1FX+ 7TX Fiber Switch

The 3C-LINK 3C-SFP0107H is 7 10/100Mbps auto-negotiable UTP ports and 1 FX or SFP port in the switch. It is an excellent all-purposed Optical Fiber Switch with work group, it can be used as switch equipment in small network

10/100M 1 FIBER + 7 UTP media converter

10/100M single-mode dual fiber media converter with 4*10/100M RJ45 ports and 1*155M SC fiber port. Total power is 3.5W, 1310nm wavelength, default transmission distance 0-20km. External power supply

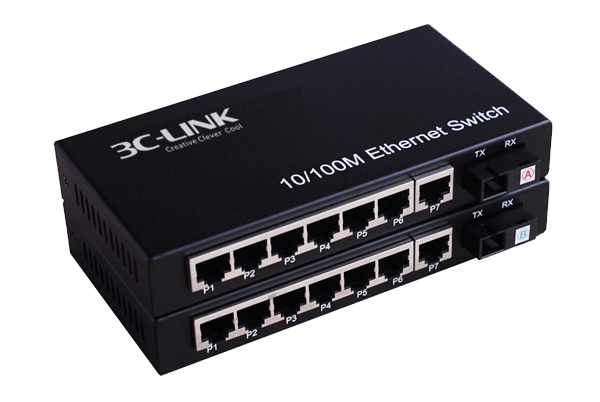

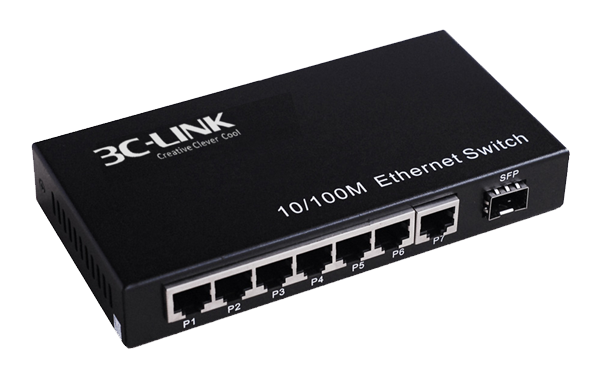

The 3C-S0107H/ SFP0107H  is 7 10/100Mbps auto-negotiable UTP ports and 1 FX or SFP port in the switch. It is an excellent all-purposed Optical Fiber Switch with work group, it can be used as switch equipment in small network.

Every UTP ports of 3C-S0107H/ SFP0107H  can be joined by Twist Pairs with Hubs, Switches, Routers, Servers or NIC etc. Ethernet equipments, It is convenient to users because it is unnecessary to distinguish MDI or MDI-X. For this Switch can work in 100Mbps steadily, please select Cat 5 UTP cable, and make the connector with guide.

The SFP port can be joined by Corresponding Fiber with another Fiber Media Converter, Hubs, Switches, Routers, Servers or Fiber NIC etc. Ethernet fiber equipments. The SFP port is set to Full Duplex.

Use corresponding cable to connect this switch port and the docking equipment port, Insert the AC/DC adapter to the power socket of the switch and AC power supply, The LED indicators front of the switch will blink in turn, it shows the switch is self-testing, when the self-testine is completed, the power LED indicator and other LED indicators will indicate the working condition of every ports as following description.


FEATURE


100Mbps RJ45  SC/SFP  port
◇ All series support “10/100M RJ45 port and 155M SC/SFP port  combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



Easy to use and maintain
◇ Compatible with IEEE802.3u 100Base-TX/FX network protocol, 10/100M port rate auto-negotiation
◇ Support full-duplex/half-duplex working mode with auto-negotiation function
◇  Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines
◇ Complete LED working status indication for network diagnosis and fault checking, reducing maintenance workload.


Stable and reliable
◇ Low power consumption, No fan , galvanized steel casing,
◇ CCC,CE, FCC, RoHS.

TECHNICAL SPECIFICATION




Model 3C-SFP0107H 3C-S0107H
Interface 7* 10/100Base-TX ports (Data)
1*155M uplink SFP fiber port (Data)
7* 10/100Base-TX ports (Data)
1*155M uplink SC fiber port (Data)
Network Protocol IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3u 100Base-FX
IEEE802.3x
Ethernet Port Feature 10/100Base-TX auto-sensing,full/half duplex MDI/MDI-X self-adaption
Fiber Port 155Mbps, multimode dual fiber ,SC interface
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 1.6Gbps
Forwarding
Rate@64byte
1.34Mpps
MAC Address Table 1K
Buffer Memory 768K
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber cable/distance Multi-mode: 850nm 0~500M, 1310nm 0-2KM
Total PWR / Input Voltage 3W/5VDC
Power Consumption Standby<2W, full load<5W
Power Supply External power adapter, AC100~240V 50-60Hz 1A
LED Indicator

Power : PWR (green), Network : Link (green), Fiber port :L/A (green)
Operation TEMP / Humidity -20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity -40~+80°C, 5%~95% RH Non condensing
Dimension (L*W*H) 190.5*105*29mm
Net /Gross Weight <0.5kg / <1kg
Installation Desktop.
Anti-surge / Protection Level Anti-surge 4KV 8/20us, Protection Level: IP30
Certification CCC,CE mark, commercial ,CE/LVD EN60950, FCC Part 15 Class B; RoHS
Warranty 3 years warranty, life-time maintenance
