24 Ports 10/100/1000M POE+2* Giga SFP Slots Smart Switch

3C-PSE0224G is 24 port poe switch with 2 SFP, 24 10/100/1000Mbps PoE port with 2 Gigabit SFP Ports. 3C-PSE0224G can carry power to IP camera, wireless AP, wireless bridge, IP phone.3C-PSE0224G is with 4 working mode, In AI VLAN mode, 1 -24 ports are isolated from each other, which can effectively restrain network storms and improve network performance. In AI Extend mode, the effective transmission distance of 1-24 ports can reach 250 meters, which is suitable for remote monitoring and power supply. In the AI power supply mode, the switch automatically detects the working status of the PD device and finds that the device abnormal automatically restarts the device. In AI QoS mode: the video data will be processed preferentially when the device is congested to make the video smoother 3C-PSE0224G 24 port poe switch support IEEE802.3af/at , auto identification power device, so don’t worry it will destroy the private standard PoE or non-PoE device.

24 Ports 10/100/1000M POE+2* Giga SFP Slots Switch

3C-PSE0224G is 24 port poe switch with 2 SFP, 24 10/100/1000Mbps PoE port with 2 Gigabit SFP Ports. 3C-PSE0224G can carry power to IP camera, wireless AP, wireless bridge, IP phone


* Support Auto-MDIX, and full/half duplex self-negotiation mode
* Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
* Support 4Μ bytes giant frame, compatible with various extension protocol
* 8K MAC address table
* Support IEEE802.3az energy efficient Ethernet technology
* Electric 4KV surge protection, easy to use in outdoor environment
* Complete status indicator, working state at a glance
* Power input polarity protection design, no worry about wrong operation
* Metal case, no fan design






AI Extend: Extend 250M Transmission AI VLAN: Enables Port Isolation on Ports 1-16. AI QOS: It can prioritize video data in the network to ensure that video data is not blocked, more fluent transmission and without delay AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time

Intelligent PoE Power Supply

24 ports 1000M RJ45 support PoE power supply, which meets the requirements of PoE power supply in security monitoring, teleconferencing systems, and wireless coverage. Support IEEE802.3af/at standard protocol, single port maximum PoE output power is 30W, no need to worry about PoE or non-PoE devices with private standards will be corrupted.

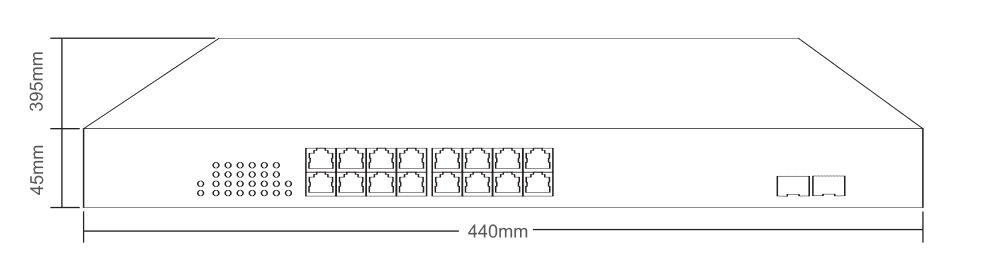

Dimension


Physical Port
RJ45 Port and Speed 24×10/100/1000Base-Tx RJ45
Fiber Port and Speed 2×100/1000Base-Fx SFP
PoE Injector Port 24 ports with 802.3at/af PoE injector function
Parameters
Ethernet Standards IEEE 802.3 10BASE-T



IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x flow control and back pressure

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

Packet Buffer 4Mbits
Packet Length 10Kbytes
MAC Address Table 8K
Transmission Mode Store and Forward
Switch Fabric 56Gbps/non-blocking
Exchange Property Delay time: < 7ps



Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps

PoE
PoE Standard 24×IEEE 802.3af/IEEE 802.3at PoE
Power Budget Max. PoE output power budget 30W
LED Indicator PWR, LNK, PoE, SPD
DIP Switchs VLAN: Avoid the internet storm and enhance the network ability;
Extend: Extend 250M transmission;
AI PoE: Automatic self checking, reboot the device while find it fake dead;
AI QoS: Video data first, more fluent transmission.
Power Information
Power Type Internal Power
Power Input AC 100~240V, 50/60Hz, auto-sensing
Total Power Consumption 350 watts (max.)
Physical Property
Enclosure Metal
Cooling Mode Natural cooling, no fan design
Dimensions 440mm×295mm×45mm,19-inch, 1U height
Weight 2500g
Working Environment
Operating Temperature -40°C~75°C
Operating Humidity 5%~90% non-condensing
Storage Temperature -40°C~85°C
Warranty
MTBF 500,000 hours
Defects Liability Period 1 year warranty, lifetime technical support
Certification Standard
EMC FCC Part15 Class A



CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8

EN61000-4-11

Vibration IEC60068-2-6



-40~75°C High and Low Temperature Test

IP40 Protection Test
