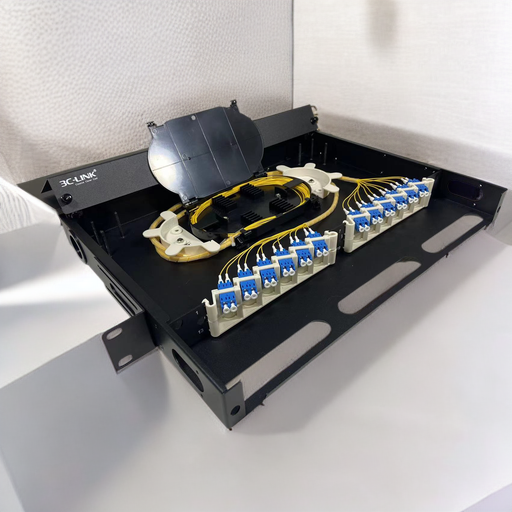

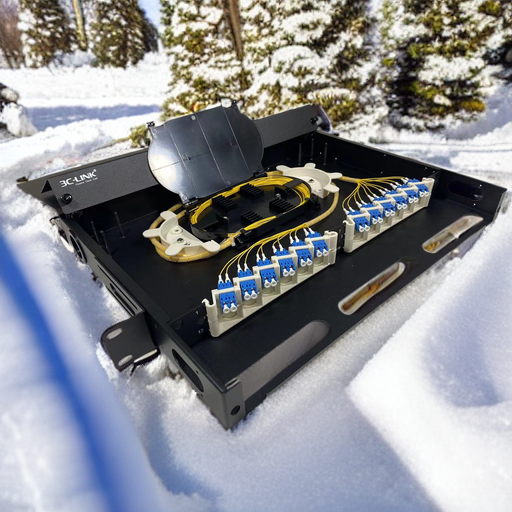

* Use with the photoelectric transmission equipment of the machine room
* Provide optical fiber jumper, fusion and management
* Provide up to 24-core(SC,FC,ST) or 48-core(LC) fiber fusion and jumper
* Aluminum alloy, electrostatic powder paint
* Applicable to 19” and 23” cabinets or racks
* There are inlet and outlet ports, and rubber sleeve protection to prevent rodent insects from entering
* Panel adopts movable button design and easy assembly. Panel can be changed to ST. SC. FC according to requirements.
* Also, there are two type of panel, 45˚ bevel of plastic panel and 90˚ of iron panel.
* The cabinet can be equipped with a storage tray for welding according to actual needs.
* Adaptor selection: 45˚ bevel of plastic panel - SC / ST / LC / FC
* 90˚ of iron panel - SC / ST / LC / FC / MPO / MTRJ according to requirements
| Model |
3C-ODF-F24-1U-1.2AL-W-SC |
| Height |
1U(44mm) |
| Capacity of Splice |
12/24F |
| Dimension |
410*310*41mm |
| Material |
Aluminum or upon request |
| Painting |
Electrostatic powder paint |
| Thickness(mm) |
1.2/1.5 |
| Weight (KG) |
2.1 |
The Plastic adapter panel can support SC/ST/FC/ LC Duplex at the same time.( No need change adapter panel)
| FC Adapter |
SC Adapter( LC Duplex optional) |
ST Adapter |
 |
 |
 |
