LC Adapters

The 3C-LINK LC Series combines all the benefits of a highly compact design with the high-optical performance required by today’s most demanding fiber optic and networking applications. Our LC Series include a broad selection of connectors and adapters, available in a variety of different models and styles. Used for single, multi-mode and APC applications.

3C-LINK LC FIber adapter

Fiber Type: SM (9/125), MM (50/125, 62.5/125) Application Mode: SM, MM, APC Insertion Loss: 0.3dB or lower Return Loss: 55dB or more UPC; 65dB or more APC IEC: IEC 61754-20

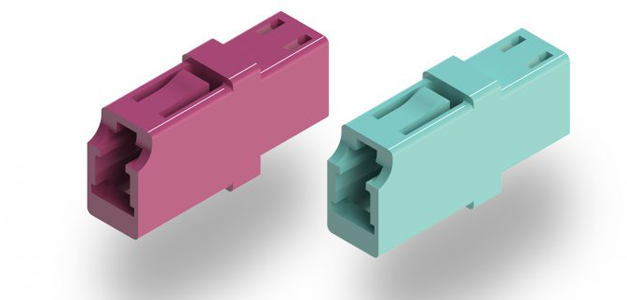

LC Simplex Adapters

3C-LINK  LC Simplex Adapters are precision molded and designed to fit any LC type connector. Used for single, multi-mode and APC applications, LC Simplex Adapters are available in both standard and low-profile designs with the choice of phosphor bronze or zirconia split-sleeve styles.


Standard LC Simplex Adapter

Featuring a durable, practical and compact design, the Standard LC Simplex Adapter is fully compatible with the complete range of LC Type products.

Low-Profile LC Simplex Adapter

The Low-Profile LC Simplex Adapter snaps directly into the panel for easy mounting, and the locking-arm style housing provides a more secured coupling.

Standard LC Duplex Adapters

The Standard LC Duplex Adapters are designed to deliver dependable performance and stability.

Low-Profile LC Duplex Adapter

The Low-Profile LC Duplex Adapter accommodates compact assemblies for improved accessibility, with a snap-panel feature for easy mounting.



Quad LC Adapters

 LC quad adapters connect any pair of single mode, multi mode or polarization maintaining fiber cable terminated with industry-standard LC/PC or LC/APC connectors and minimize back reflections by bringing the fibers’ cores into physical contact. The housing type is one piece, senior/junior with plastic flange and metal mount plate.

The LC quad adapters are produced in four standard colors – blue (RAL 5015), light green (RAL 6018), aqua (RAL 6027) and beige (RAL 1013).

Key Features:

- Quad Adapters to Align LC/PC or LC/APC Connector Terminated Fiber Cables

- Low Insertion Loss

- High Durability

- Precision Alignment Straight Split Sleeves

- Compact and Lightweight

- Easy Panel Installation
