BI-DI-XFP
BI-DI-XFP-1

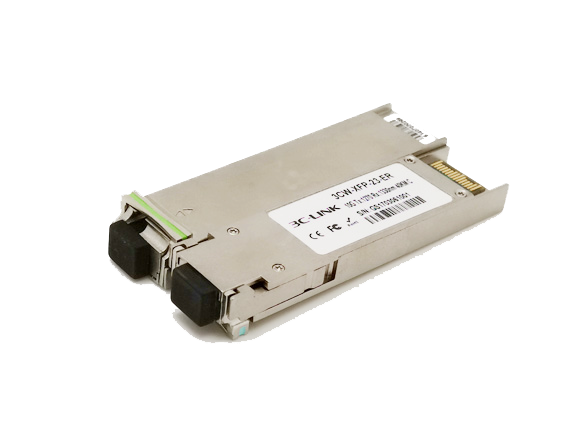

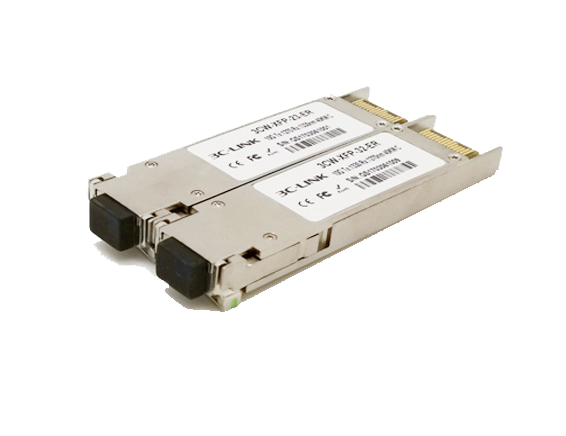

10G BI-DI XFP Module

The BIDI XFP transceiver is designed for optical communications up to 300m~120km with signaling rates up to 10Gbps by using 1330 (1270)nm transmitter and 1270 (1330)nm receiver. The 10G BIDI XFP transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270)nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330)nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. 3C-LINK XFP transceivers are ROHS compliant, allow for real-time diagnostic monitoring as per SFF-8472 and designed to Multi-Source Agreement (MSA) standards for Single Strand BIDI transceiver with LC interface

10G BI-DI XFP Transceiver

The BIDI XFP transceiver is designed for optical communications up to 300m~120km with signaling rates up to 10Gbps by using 1330 (1270)nm transmitter and 1270 (1330)nm receiver.

Model No 3CW-XFP-23-LR Vendor Name 3C-LINK
Form Factor XFP Max Data Rate 11.3168Gbps
Wavelength 1270nmT/1330nm R Max Fiber Distance 10Km
Connector LC Simplex Fiber Type SMF
Transmitter Type DFB Receiver Type PIN
Typical Power Consumption < 1.4W Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.0~1dBm Receiver Sensitivity <-14dBm
Max Powerbudget 8dB Receiver Overload 0dBm
Bit Error Ratio (BER) 1E-13 Extinction Ratio >3.4dB
Application 10G Ethernet, CPRI Warranty 3 Years

Model No 3CW-XFP-32-LR Vendor Name 3C-LINK
Form Factor XFP Max Data Rate 11.3168Gbps
Wavelength 1330nmT/1270nm R Max Fiber Distance 10Km
Connector LC Simplex Fiber Type SMF
Transmitter Type DFB Receiver Type PIN
Typical Power Consumption < 1.4W Temperature Range 0 to 70°C (32 to 158°F)
TX Power -8.0~1dBm Receiver Sensitivity <-14dBm
Max Powerbudget 8dB Receiver Overload 0dBm
Bit Error Ratio (BER) 1E-13 Extinction Ratio >3.4dB
Application 10G Ethernet, CPRI Warranty 3 Years


High Performance

Low power consumption <1W, saving power

100us typical latency, MTBF over over 1 million hours

Stainless steel material, anti-corrosion and salt spray resistance


Wide Application

Fully compatible with almost all Cisco devices

Widely used on 10G Ethernet switches, routers, servers, NICs and other transmission equipment

Suitable for Enterprise LAN Networks and other cooper networking connections


Protocols and Safety Standards

Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant

IEEE Std 802.3u and 802.3ab, SFP MSA Compliant

Lifetime Warranty

All the fiber optic products in 3C-LINK are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
