XFP-LR
XFP-SR

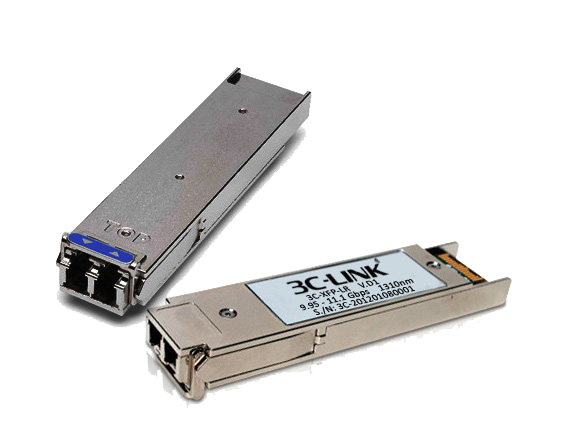

10G Duplex XFP Transceiver

10G XFP transceiver is a SFP module designed for 10G network applications including 10Gig Ethernet and fiber channel. It is fully compliant to XFP MSA Rev 4.5. The modules are designed for single mode fiber and operates at a nominal wavelength of 850/1310/1550 nm. 3C-LINK 10G XFP transceivers are manufactured according to according to the multi source agreement (MSA) and features compact size and most economic prices compared with its former 10g transceivers. Typical 10G XFP in the market include SR, LR, ER, ZR versions. 3C-LINK 10G XFP modules are strictly tested for compatibility of major brands like Cisco, which include XFP SR , XFP LR, XFP ER, XFP ZR and so on

10G XFP Dual fiber Transceiver

10G XFP transceiver is a SFP module designed for 10G network applications including 10Gig Ethernet and fiber channel

Model No 3C-XFP-LR Vendor Name 3C-LINK
Form Factor XFP Max Data Rate 10.3Gbps
Wavelength 1310nm Max Fiber Distance 10Km
Connector LC DX Optical Components DFB
Fiber Type  SMF DOM Support Yes
TX Power -5~1dBm Receiver Sensitivity <-14dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFP+ MSA Compliant, CPRI, eCPRI

* Remark: Different distance the TX power and RX SEN is difference. please check PDF for detail.

High Performance

Low power consumption <1W, saving power

100us typical latency, MTBF over over 1 million hours

Stainless steel material, anti-corrosion and salt spray resistance


Wide Application

Fully compatible with almost all Cisco devices

Widely used on 10G Ethernet switches, routers, servers, NICs and other transmission equipment

Suitable for Enterprise LAN Networks and other cooper networking connections


Protocols and Safety Standards

Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant

IEEE Std 802.3u and 802.3ab, SFP MSA Compliant

Lifetime Warranty

All the fiber optic products in 3C-LINK are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
