2.5g sfp transeiver

2.5G Dual Fiber SFP transceiver

3C-LINK Multi-rate Series 2.67Gb/s transceiver module integrates optics and electronics in a Small Form Factor Pluggable (SFP) package. It is Multisource Agreement (MSA) compatible and designed for operation at 1310 nm and 1550 nm. Although optimized for OC-48/STM-16, it provides multi-rate capabilities and can be used from OC-3/STM-1(155 Mb/s) up to 2.7 Gb/s. MultiRate SFP transceiver provides a fully OC-48 SONET compliant interface between the SONET/SDH photonic layer and the electrical layer. Its microprocessor - based modular design implements all features specified in the SFP MSA compatible 2-wire Serial Digital Diagnostic Monitoring Interface for Optical Transceivers. OC-48 / STM-16 is a network line with transmission speeds of up to 2488.32 Mbit/s (payload: 2405.376 Mbit/s; overhead: 82.944 Mbit/s).

STM-16 SFP Transceiver

3C-LINK Multi-rate Series 2.67Gb/s transceiver module integrates optics and electronics in a Small Form Factor Pluggable (SFP) package.

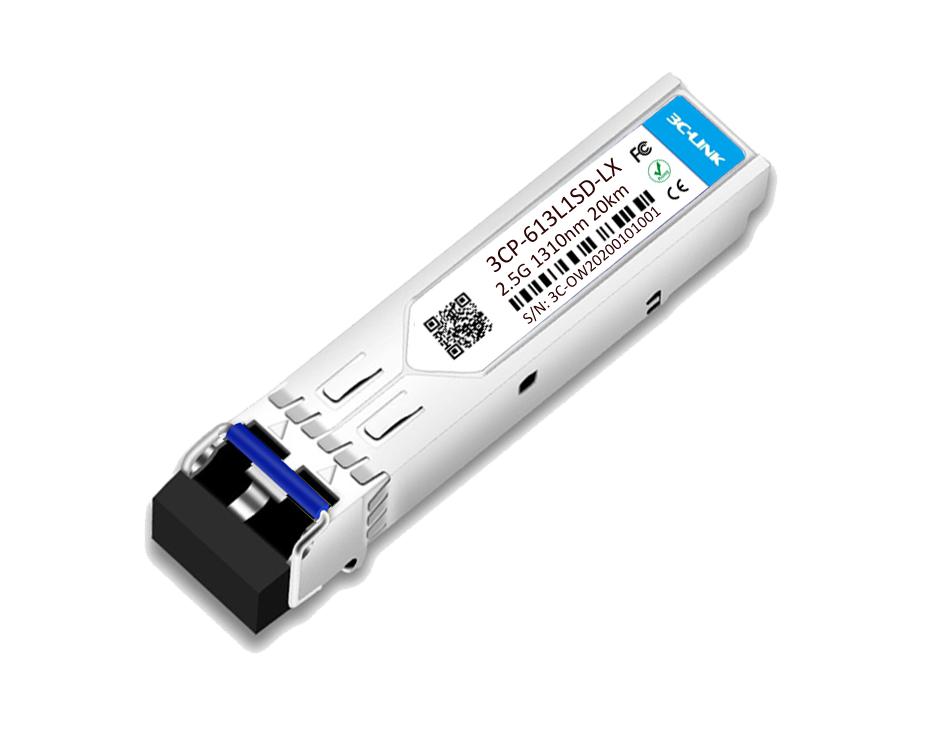

Model 3CP-613L1SD-LX Vendor Name 3C-LINK
Form Type SFP Max Data Rate 2.488Gbps
Wavelength 1310nm Max Cable Distance 15km
Interface LC duplex Optical Components DFB 1310nm
Cable Type SMF DOM Support Yes
TX Power -5~0dBm Receiver Sensitivity < -18dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols MSA Compliant

Remark: 40km, 60km, 80km, 100km, 120km the TX Power and RX SEN is difference, please check order information PDF for detail.


High Performance

Low power consumption <1W, saving power

100us typical latency, MTBF over over 1 million hours

Stainless steel material, anti-corrosion and salt spray resistance


Wide Application

Fully compatible with almost all Cisco devices

Widely used on Fast Ethernet switches, routers, servers, NICs and other transmission equipment

Suitable for Enterprise LAN Networks and other cooper networking connections


Protocols and Safety Standards

Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant

IEEE Std 802.3u and 802.3ab, SFP MSA Compliant

Lifetime Warranty

All the fiber optic products in 3C-LINK are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
