1FX+1TX-100M

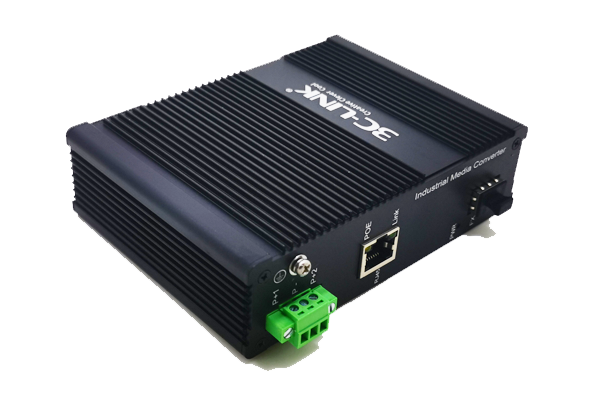

1-TX + 1-FX 10/100M IES

* Support 1 100Base-FX fiber ports(ST/SC/FC optional) and 1 100Base-T copper ports * Support dual power supply, input voltage: 12~48VDC ( 48~57VDC POE) * Support -40~75℃ wide operating temperature range 3CI-DU/WDM-100 series are 2-port 100M SC/SFP unmanaged industrial Ethernet switches. The series provide 100M copper ports, 100M fix SC/FC/ST interface. They also adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different application scenes.

10/100M Unmanaged Ethernet Switch

It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields

Highly Convenient and Feasible Industrial Robust Switch
3C-LINK has upgraded two models named 3CI-DU-100 and 3CI-WDM-100 for use in environments with wide operating temperature. 3CI-DU-100 the fiber interface is Duplex. And 3CI-WDM-100 the fiber is Simplex. 3CI-DU-100 and 3CI-WDM-100  also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

Flexibly Extendable Distance
They(the 3CI-DU-100 and 3CI-WDM-100) each include one 10/100Base-TX auto-negotiation ports and one 100Base-FX ports. The fiber distance can choice form 0-2km via multi-Mode fiber and 10-120km via the Single-Mode fiber.

Easy Installation and Wide Range of Power Usages
The  3CI-DU-100 and 3CI-WDM-100 are designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Products Size



Standard
&
Protocol
 IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
Interface  Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 100Base-FX, SC/ST/FC optional
LED Indicator  Running Indicator, Port Indicator, Power Supply Indicator
Switch
Property
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 1Mbit
Backplane bandwidth: 1.6G
Switch time delay: <10μs
Power
Requirement
 12~48VDC, 4-pin 7.62mm pitch terminal blocks
dual power supply redundancy, non-polarity, reverse connection protection
Environmental
Limit
 Operating temperature range: -40~75℃
Storage temperature range: -40~85℃
Relative humidity: 5%~95%(no condensation)
Physical Characteristic  Housing: IP40 protection, metal
Installation: DIN-Rail mounting or wall mounting
Dimension (W x H x D):
130mm×35mm×94mm
Industrial
Standard
 IEC 61000-4-2 (ESD), Level 4
lAir discharge: ±15kV
lContact discharge: ±8kV

IEC 61000-4-4 (EFT), Level 4
lPower supply: ±4kV
lEthernet port: ±2kV
lRelay: ±4kV

IEC 61000-4-5 (Surge), Level 4
lPower supply: common mode ±4kV, differential mode±2kV
lEthernet port: ±2kV
lRelay: common mode±4kV, differential mode±2kV

Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification CE, FCC, RoHS
Warranty  5 years
