288 CORES CABINET
288 cores SMC cabinet standard type
20211215043614620

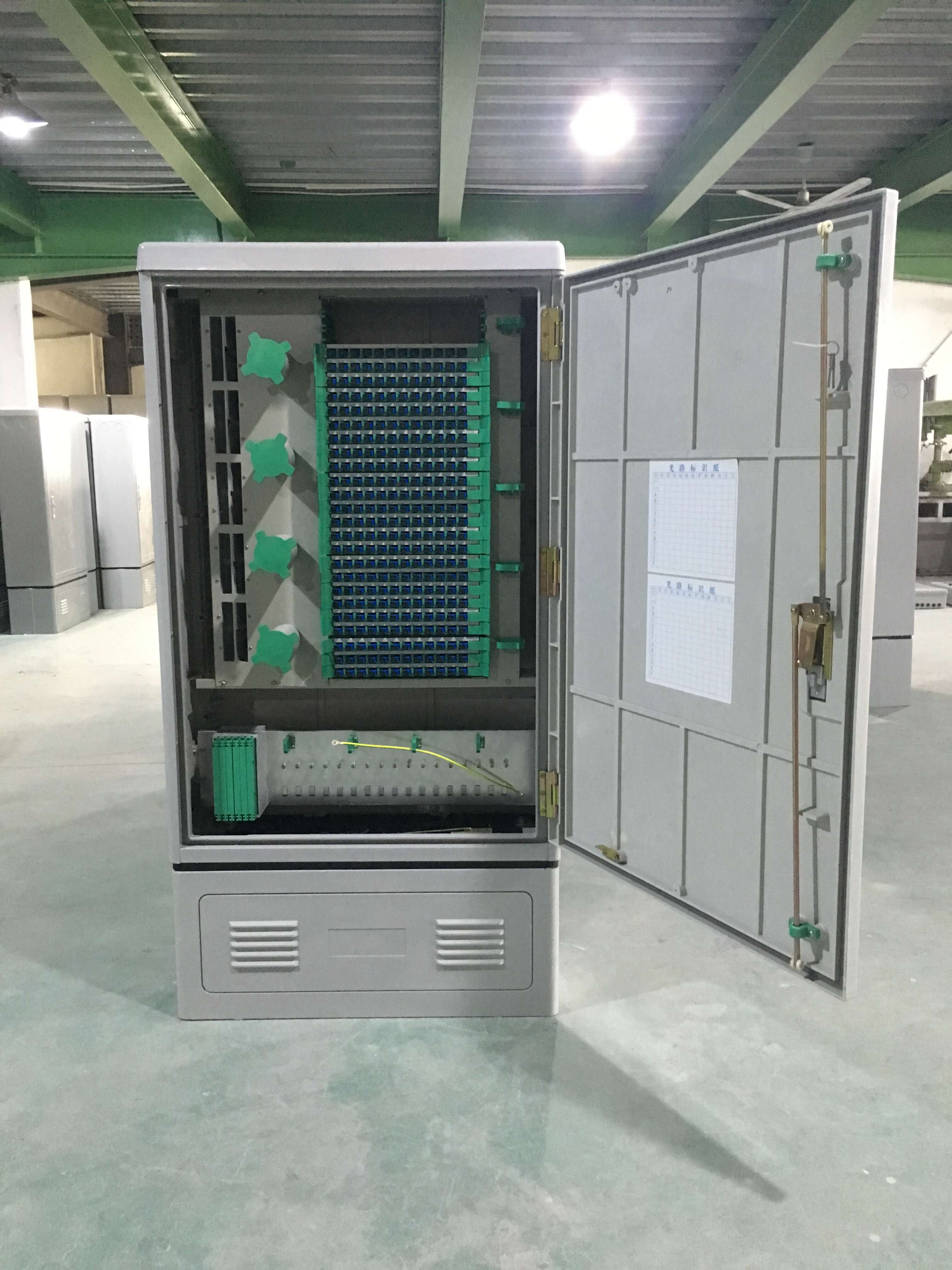

288Cores fiber outdoor street cabinet

The Cross Connection Cabinet (FDC) provides a secure transition point from the passive optical network (PON) to the subscriber drop for both pre-configured pigtail and/or patch and splice applications. This affordable, high quality Fiber Distribution Cabinet features a low profile design, providing an attractive enclosure for rural & residential deployments. Services up to 576 fiber from a single cabinet.

288 fiber outdoor street cabinet - Fiber optic cross connect cabinet, Telecom outdoor cabinet Product

Capacity up to 576 fiber Customized size available upon request Pole and pad versions available Front and back access with locking feature

288Cores fiber outdoor street cabinet - Fiber optic cross connect cabinet

Capacity up to 576 fiber
Customized size available upon request
Pole and pad versions available
Front and back access with locking feature
Provides flexible fiber cable management
Compatible with all types of PLC splitters
Pre-connectorized fiber pigtails installed for rapid deployment
Fully Customized
Model 3C-ODF-OC288
Housing Material  SMC or Stainless steel
Splice and Distribution Tray Capcity  12 pieces of SC, FC or ST adapters (12 fibers) ; 24 pieces of duplex LC adapters (24 fibers)
Splice and Distribution Tray Quantity  24 pieces max.
Applicable Adapter SC, FC, ST or LC duplex optional
Adapter Quantity  288 pieces max.
Direct Spice Capacity  48 fibers, 24 fibers/tray (can be specified)
Installation Method  Floor standing (wall/pole mount is optional)
Applicable Environment  Outdoor
Protection Grade IP65
Color  Gray
Net Weight  85KGS
Dimension (HxWxD) 1450*750*320mm (Include the Base)
