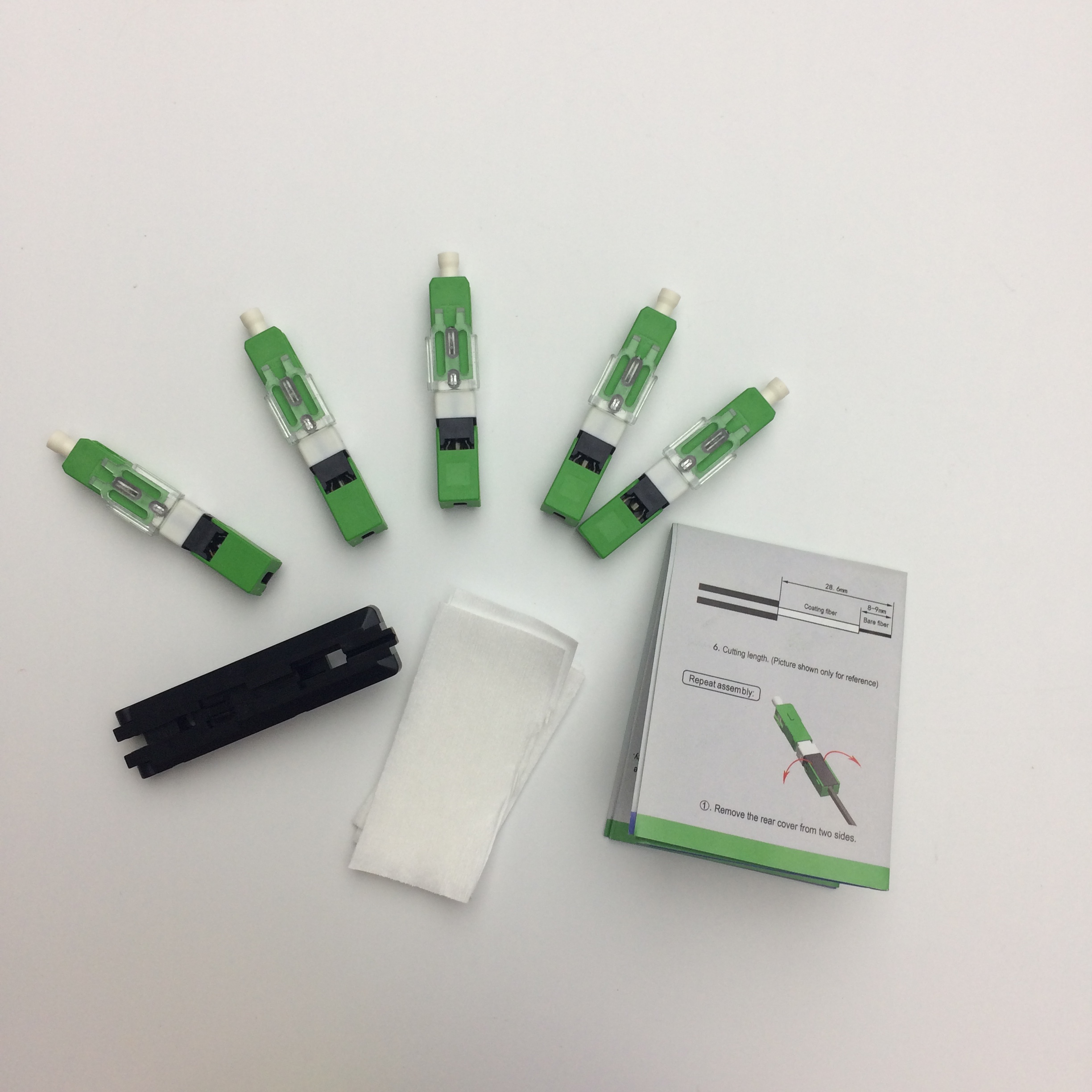

Field Installable Fast Connector 3C-ESC250D

FAST Connectors are factory pre-polished, field installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers. FAST Connectors are compatible with 2m, 3mm, and 2.0*3.0mm cordage. Each connector is color coded per industry-standard requirements to aide in identification during and after installation.

Field Installable Fast Connector for FTTH

Pre-stubbed, factory-polished ferrule No epoxy required Precision mechanical alignment insures low loss Fiber can be reseated VFI can be used to confirm fiber is installed properly

Factory pre-polished Field Installable Fast Connector SC/APC for FTTH
  Pre-stubbed, factory-polished ferrule
  No epoxy required
  Precision mechanical alignment insures low loss
  Fiber can be reseated
  VFI can be used to confirm fiber is installed properly
Model 3C-ESC250D
Cable Scope 3.0*2.0 flat drop cable
Size 51*9*7.55mm
Fiber Diameter  125um (652&657)
Mode  SM
Operation Time  about 15s (exclude fiber presetting)
Insertion Loss ≤0.25dB (1310nm&1550nm)
Return Loss ≤-50dB for UPC , ≤-55dB for APC
Success Rate  >98%
Reusable Times >10 times
Tighten Strength of Naked Fiber  >5 N
Tensile Strength  >50 N
Temperature  -40~+85℃
On-line Tensile Strength Test (20 N) △ IL ≤ 0.3dB
Mechanical Durability(500 times) △ IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)

△ IL ≤ 0.3dB
