12CORES FIBER ACCESS TERMINAL TYPE A

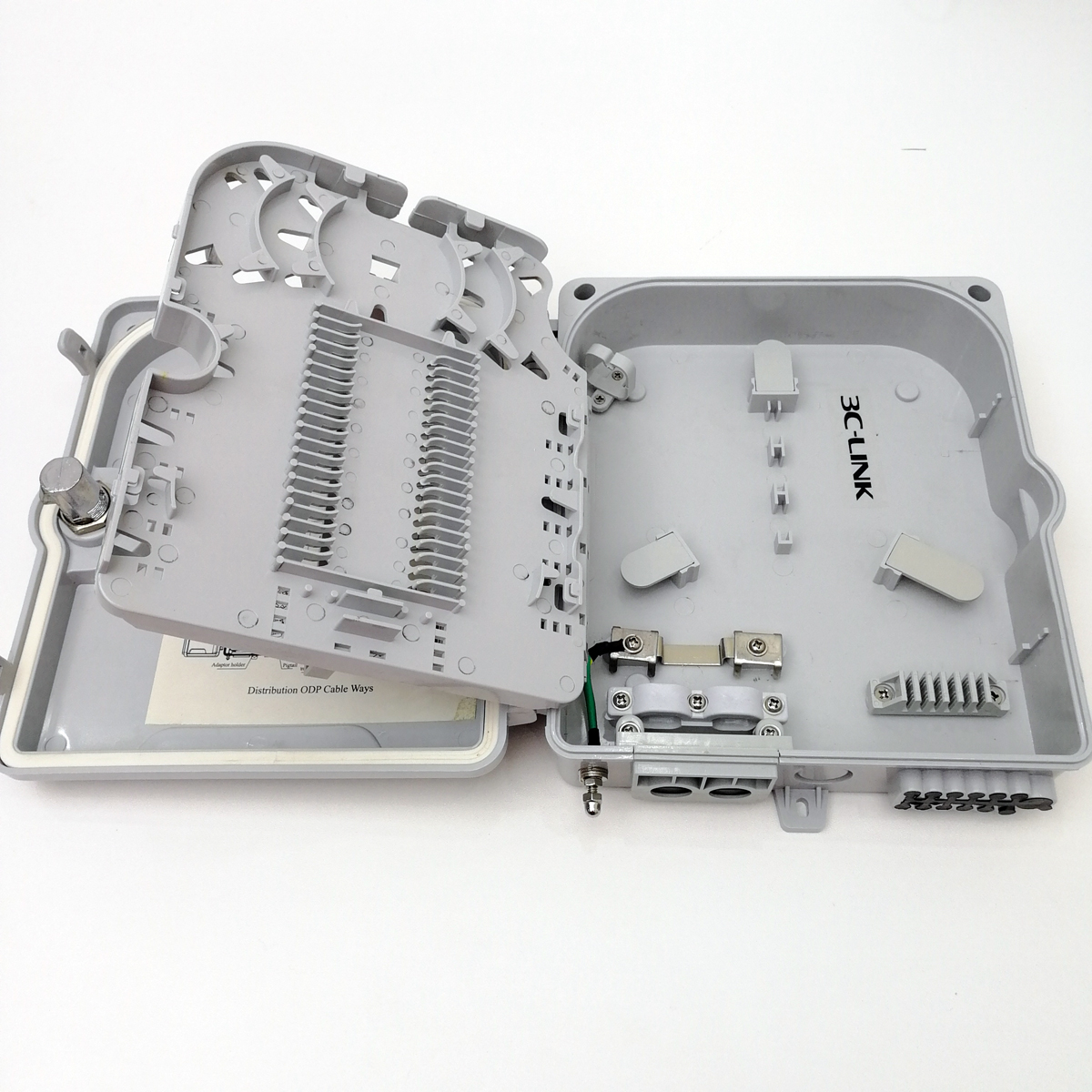

3C-FAT-12A fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

FTTX FIBER MANAGEMENT 12CORES FIBER ACCESS TERMINAL

Water-proof design with IP-66 Protection level. Easy to maintain and extend the capacity. Efficient cable management.

FTTH 12CORES FIBER ACCESS TERMINAL

Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Fiber bend radius control more than 40mm.

Suitable for the fusion splice or mechanical splice.

1*8 Splitter can be installed as an option.

Efficient cable management.

12 ports cable entrance for drop cable.

MODEL 3C-FAT-12A
Suitable Fiber Type 3.0*2.0 flat able
Cable Diameter  Distribution:12mm Drop:2*3mm
Capacity  12SC/ 24LC/1:8 PLC Splitter
IP Grade  IP66
Material PC+ABS
Size(A*B*C) 225*200*65mm
Weight 0.8KG
Suitable Adapter  SC Simplex / LC Duplex
Operating Temperature -40~+85
Installation Size (D*E) 168*210mm
Color  White/Gray
