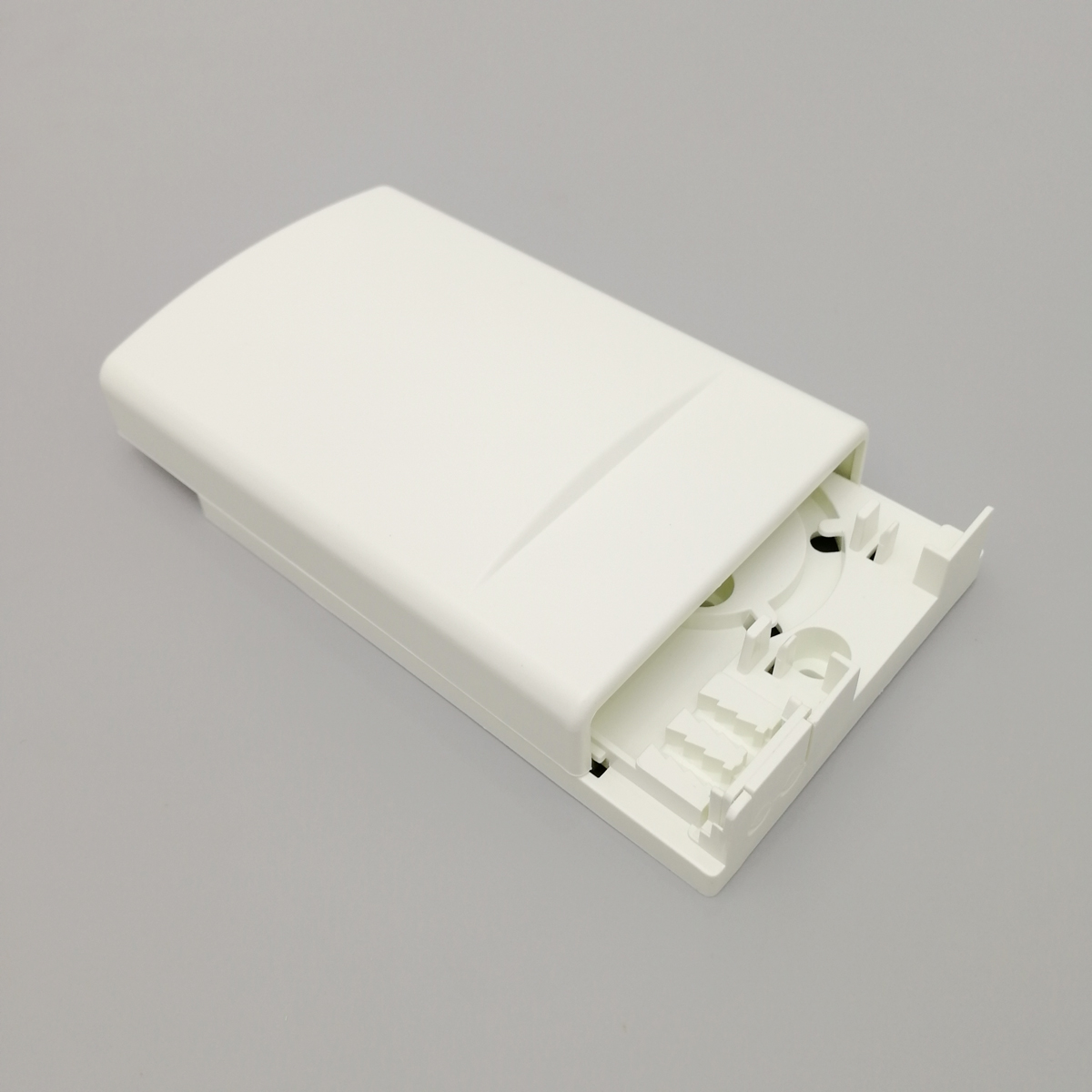

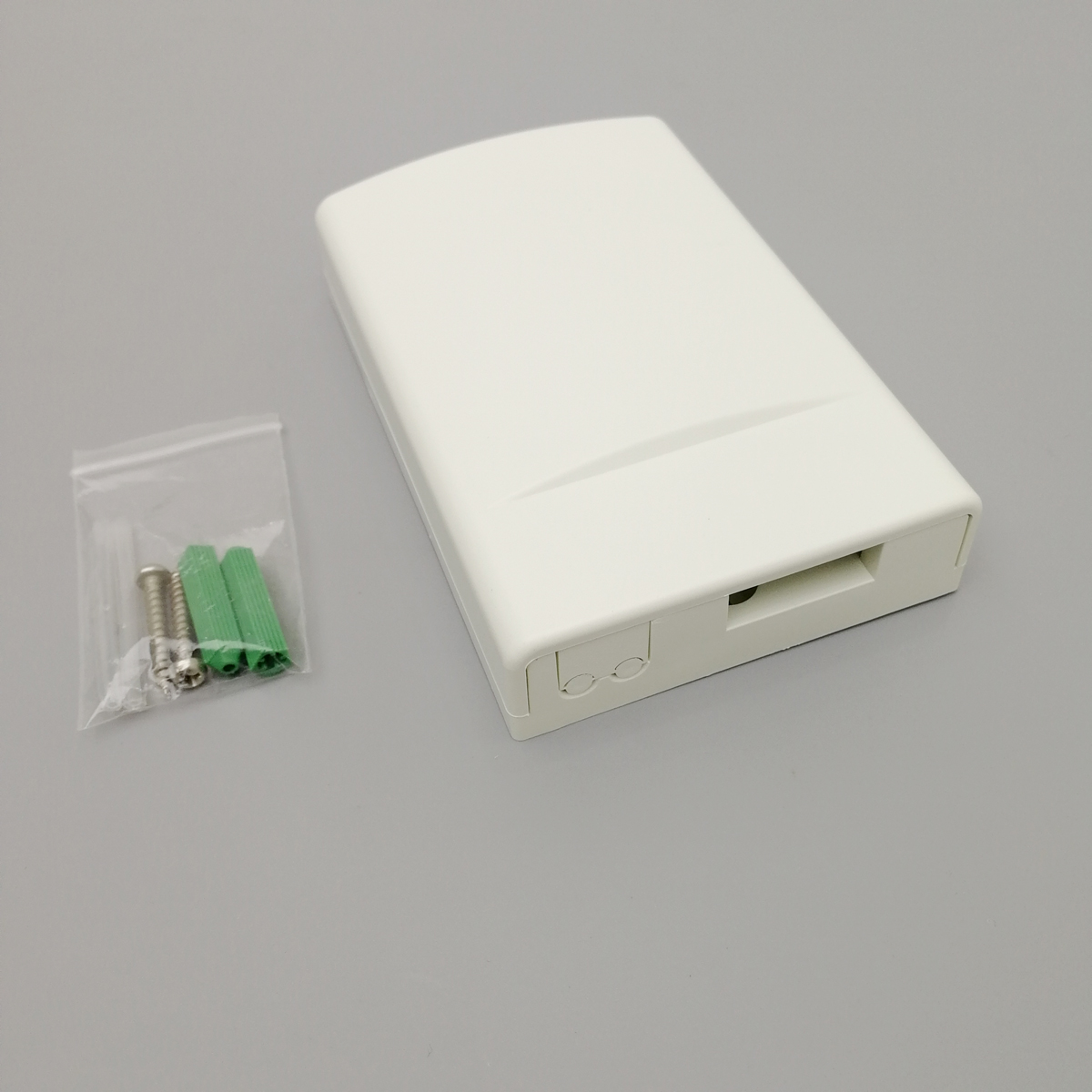

Fiber Optic Socket Wall Outlet Faceplate 3C-FRB-3A

3C-FRB-3A Fiber Optic Socket (Wall Outlet Faceplate) is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC duplex type. The fiber optic socket is used for wall mounted or desktop applications. It is designed specially for FTTx application,it is easy to install in home or office.

Fiber Optic Socket Wall Outlet Faceplate Fiber Access Termination Box

Material: Engineering plastic ABS Mount on the wall Dust-proof design with IP-45 Protection level. Embedded type surface, easy for installation and removal.

Fiber Optic Socket Wall Outlet Faceplate Fiber Access Termination Box

3C-FRB-3A  fiber termination box provides a mini density wall-mounted solution for next generation networks, which aims to provide and manage minimum numbers of fibers in a limited space.
It is normally installed in the way of wall-mounted.
Widely used in FTTH access network, telecommunication networks, CATV networks, data communications network,local area networks, indoor and outdoor application.

3C-FRB Type Optical Termination Box is designed to connect raiser/distribution cables to subscriber’s drop cable in FTTx networks. It has 1 input port and 2 output ports on the bottom and it is easy to install on the wall.

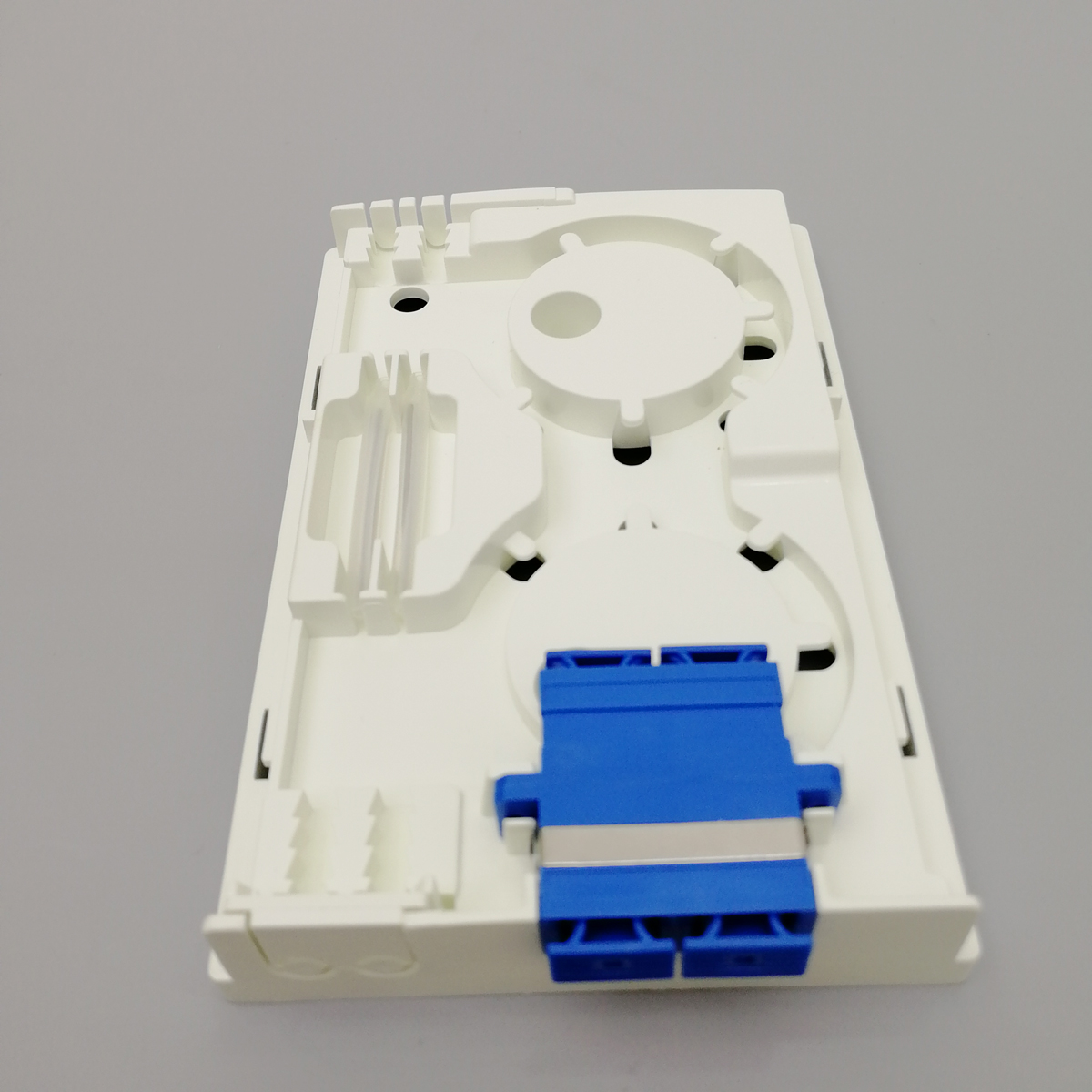

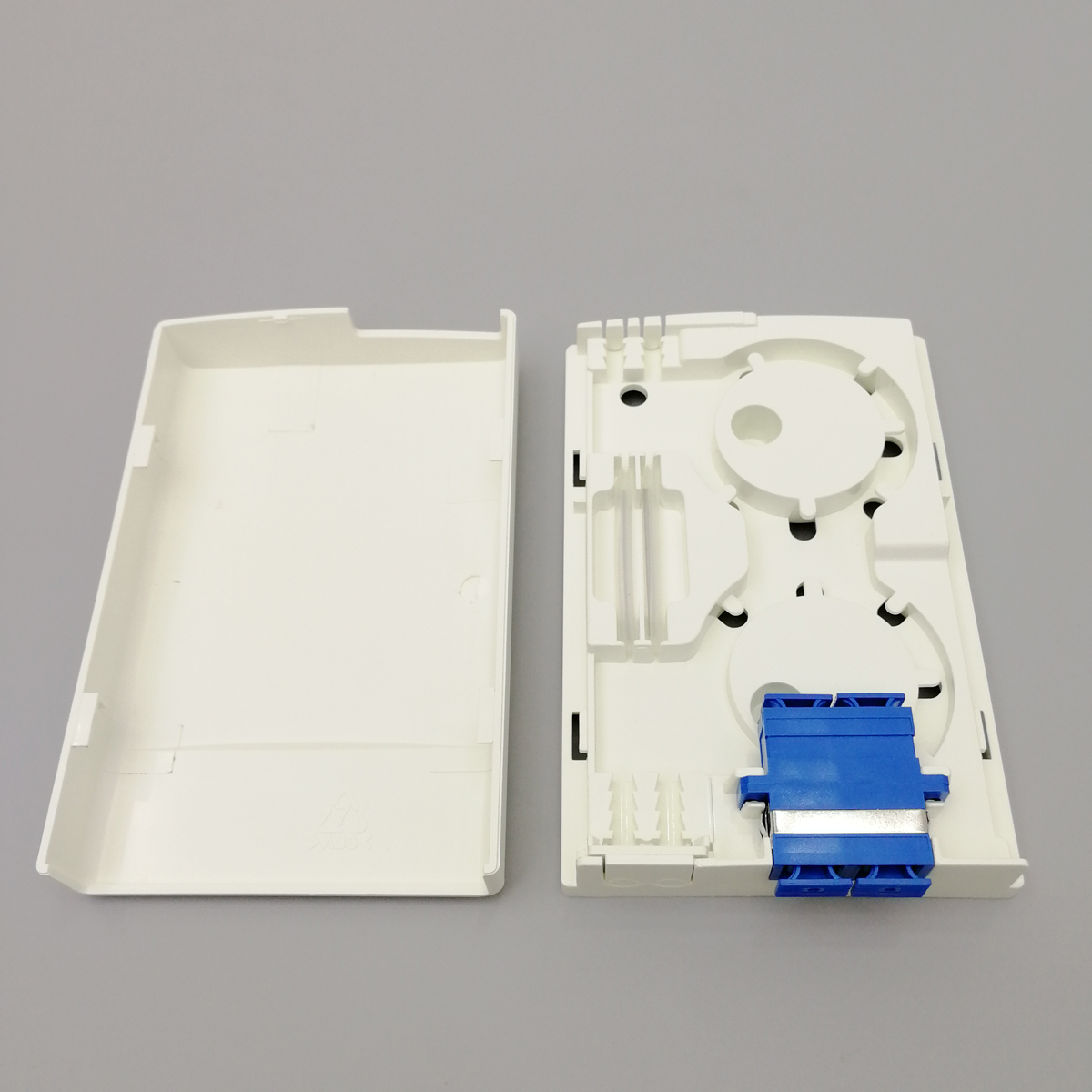

The splice tray is for splicing a fiber of raiser cable and the subscriber’s drop cable through adaptor plate acting as interface.

MODEL 3C-FRB-3A
Suitable Adapters  SC DX
Material  ABS plastic
Weight 100g
Available Cable Indoor Drop Cable
Dimensions 123mmx80mmx25mm
Connector Capacity  1PC SC duplex
Number of Terminal Drops 2 / 4 fIbers
Number of Trays No
Splice Option  Fusion splice or Mechanical splice
Applications Wall Mount Distribtuion Use
Location of Use
FTTH FTTB
